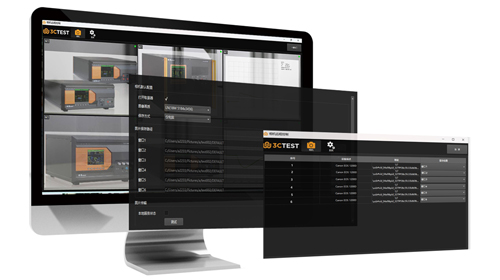

This software is a PC software designed for remote control and data transmission of cameras. Local remote control camera shooting, real-time monitoring of test data and transmitting it to the server.

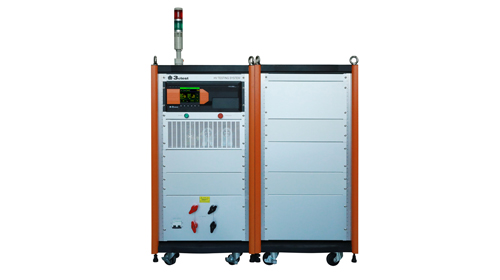

The impulse current testing system consists of a control box MCS2000-6U and a simulator S12A500. It can output a 10/350 μ s pulse current waveform with a maximum output current of 5000A.

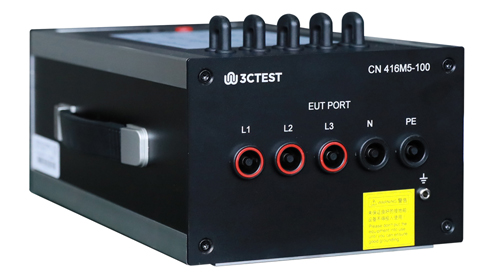

The CN 416M5-32 coupling network is suitable for (common mode conducted immunity) 5-wire cables, and its coupled common mode conducted immunity voltage can reach 300V.
The APS xxxxDSR series is equipped with a four quadrant bipolar amplifier, which can generate voltage drops, short-term interruptions, and various voltage changes.
The TBR 1500 radiation ring can generate a strong DC magnetic field under the driving of a small current, meeting the testing requirements of ISO11452-8:2015 Road vehicles component test
DN 416M2-32 decoupling network is suitable for (0 Hz-150 kHz common mode conducted immunity) 2-wire cables, which have a common decoupling can reach 60 dB.
The TPT-7637-4C1000C coupling transformer is a broadband coupling transformer designed for the anti-interference testing needs of standards such as ISO 21498-2:2021 and
CDN 405T8 (POE) coupling/decoupling network is suitable for (surge test) 4 pairs of 8-wire unshielded symmetric high speed (POE) communication line coupling decoupling network
CWS 120CT is a high-end testing equipment specially designed to simulate the phenomenon of low-voltage surge pulse interference.
EMID 150K electromagnetic interference decoupling clamp is used for the decoupling of RF signals at the auxiliary equipment end in the immunity test of conducted disturbances
