The EDS MAX16 is 3CTEST’s fourth - generation electrostatic discharge simulator in compliance with IEC 61000 - 4 - 2 and other standards.
The INR 60 Inductive Noise Immunity Tester is developed according to the Toyota TSC0502G Fig.22 standard. It simulates the high-voltage noise waveform generated in a vehicle...
The CN 416M5-100 coupling network is suitable for (common mode conducted immunity) 5-wire cables, and its coupled common mode conducted immunity voltage can reach 300V.
CDN 405M40-32 is suitable for coupling and decoupling testing networks of data and control lines for 4 unshielded asymmetric lines during surge testing, with a peak voltage of up to 6 kV.

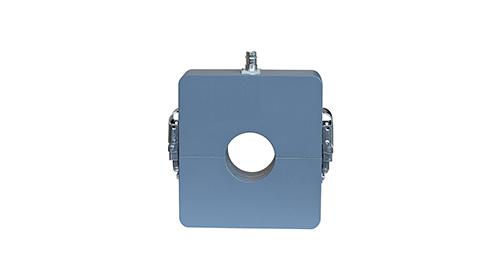

The BCM 0220M surface current probe is used for measuring the induced current on the surface of conductors in electromagnetic radiation environments.
The S15C series is a new type of impulse current simulator developed based on standards. It can output 8/20 μs pulse current waveform, with a maximum output current of 40 kA.
The high-power short-time overcurrent simulator ICG 3600 is a test instrument designed according to ANCI C12.02-2001 standard, which is suitable for detecting the disturbance immunity
The high voltage piezoelectric performance test system for electric vehicles is suitable for the high voltage parts test of new energy vehicles in the voltage class DC 60 V ~ 1500 V. HV battery systems
This software is a PC software designed for remote control and data transmission of cameras. Local remote control camera shooting, real-time monitoring of test data and transmitting it to the server.
The impulse current testing system consists of a control box MCS2000-6U and a simulator S12A500. It can output a 10/350 μ s pulse current waveform with a maximum output current of 5000A.
