Technical Parameters

Oscillation
Frequency (±10%)

10 kHz 、30 kHz、100 kHz 、300 kHz、1 MHz 、3 MHz 、10 MHz、 30 MHz 、100 MHz

Maximum Test Current
(Loop impedance 100 Ω)

10 kHz

＞0.1 A

30 kHz

＞0.3 A

100 kHz

＞1 A

300 kHz

＞3 A

1 MHz

＞10 A

3 MHz

＞10 A

10 MHz

＞10 A

30 MHz

＞10 A

100 MHz

＞3 A

Output impedance

＜100 Ω

Damping Factor (Q)

15±5

Repetition Rate

0.5~ 9 s

General Parameters

Display

5.7-inch TFT touch screen

Scope of Working Power Supply

AC 220 V，±10%，50 Hz（±5%）

Fuse

6A

Maximum Power Consumption

200 W

Chassis Size

620 * 450 * 280 mm (6U chassis)

Weight

About 26.5 kg

Ambient Temperature

15 ℃ ~ 35 ℃

Relative Humidity

45% - 75%

Atmospheric Pressure

86 kPa - 106 kPa

Standard Accessories

Host, Instruction Manual, Testing Report, Quality Assurance Certificate, Testing Wire, Power Cord, Grounding Wire, Fuse

Optional Accessories

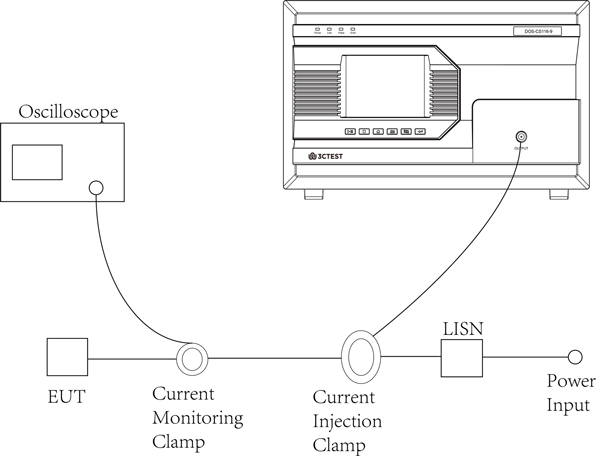

Current injection clamp and calibration clamp

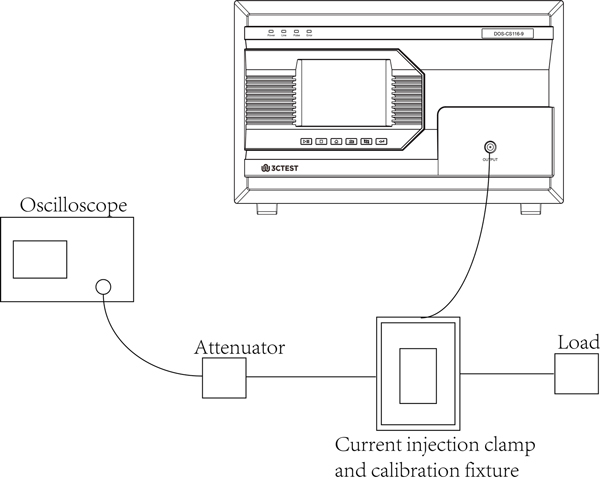

Option 1. Current injection clamp BCIP-200 and calibration clamp BCICF-200

Frequency range :10 kHz ~ 200 MHz
Inner diameter φ40 mm

Note: This generator only matches BCIP-200 and BCICF-200 and FCC related products.

1. High voltage coaxial load HCL 50N

50 Ω 5 W
DC-100 MHz

2. Attenuator TFB 100

40±1.5 dB 5 W
DC-400 MHz

3. Broadband current monitoring clamp TWCM-200

Frequency range 10 kHz-200 MHz
Inner diameter φ40 mm

4.LISN J50

Maximum continuous current 50 A
Impedance 50 μH + 5 Ω‖50 Ω

5. LISN J200

Maximum continuous current 200 A
Impedance 50 μH + 5 Ω‖50 Ω
