      Common Mode Conduction Anti-interference Coupling Network CN 416M4N-32(690V)
      Model:CN 416M4N-32(690V)

      Profile

      The CN 416M4N-32 coupling network is suitable for (common mode conduction anti-interference) 2-wire or 3-wire cables, and its coupling common mode conduction anti-interference voltage can reach 300V. Design strictly in accordance with the requirements of IEC 61000-4-16:2015 standard.
      PDFConsultation

      Online customized according to your needs>>

        Share
      • Feature
      • Standard
      • Parameter
      • Fitting
      • Services
      • Video

      Introduction:

      The CN 416M4N-32 coupling network is suitable for (common mode conduction anti-interference) 2-wire or 3-wire cables, and its coupling common mode conduction anti-interference voltage can reach 300V. Design strictly in accordance with the requirements of IEC 61000-4-16:2015 standard.


      Features:

      > Suitable for 4-wire common mode simultaneous injection;

      > Quick short-circuit switch for DC coupling;

      > Banana head terminal signal injection.

      • IEC 61000-4-16

      Technical Parameters

      Standard

      IEC 61000-4-16:2015

      Coupling Frequency

      0 Hz-150 kHz, CW wave

      Line Impedance

      400 Ω * 4(Accuracy 1%)

      Coupling Voltage

      300V

      Coupling Mode

      4-wire common mode (simultaneously to ground)

      Coupling Device

      1 μF capacitor(Accuracy 1%)

      Working Voltage

      Maximum 690V DC

      Working Current

      Maximum 32A

      AE/EUT Port Type

      4 mm banana head

      Signal Injection Port Type

      4 mm banana head

      General Parameters

      Weight

      Approximately 3.6 kg

      Size

      360 mm x 220 mm x 135 mm (length x width x height)

      Shell Material

      Aluminum material

      Ambient Temperature

      15 ° C -35 ° C

      Relative Humidity

      45% -75%

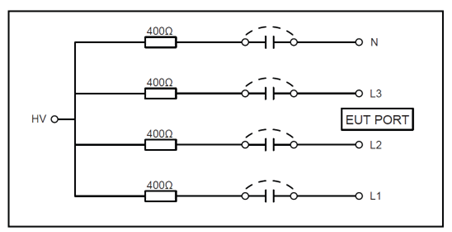

      Standard Schematic Circuit:


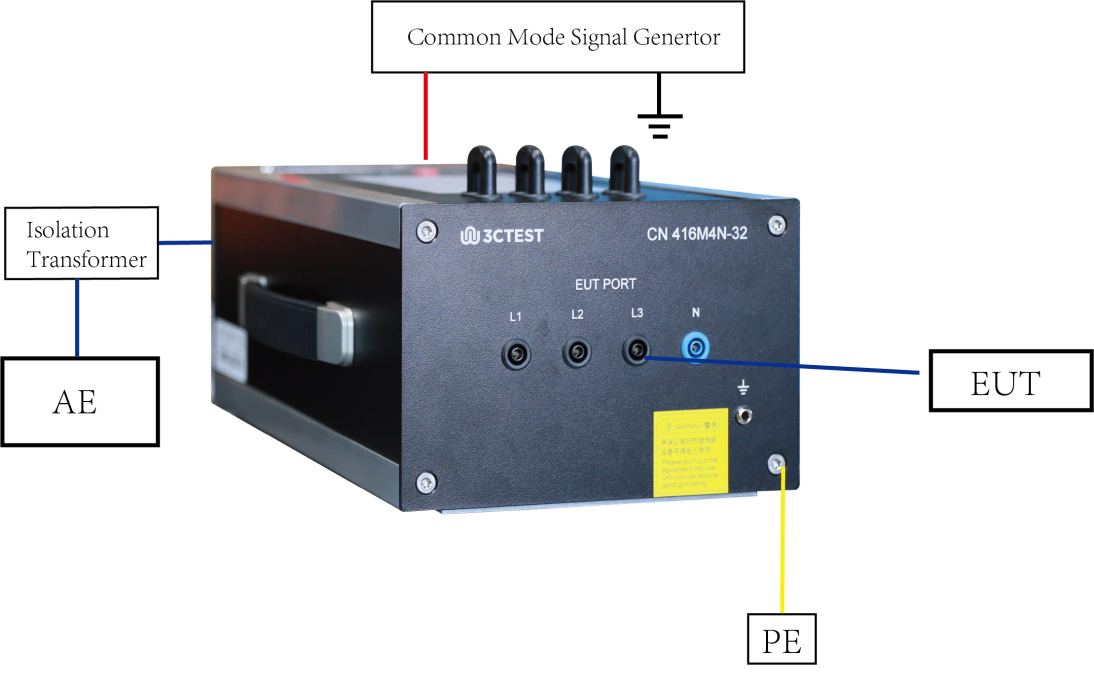

      Test Connection Illustration:


      Standard Accessories:Test line, Plug
