Technical Parameters |
|||
|
Sensitivity* |
0.01 V/A |

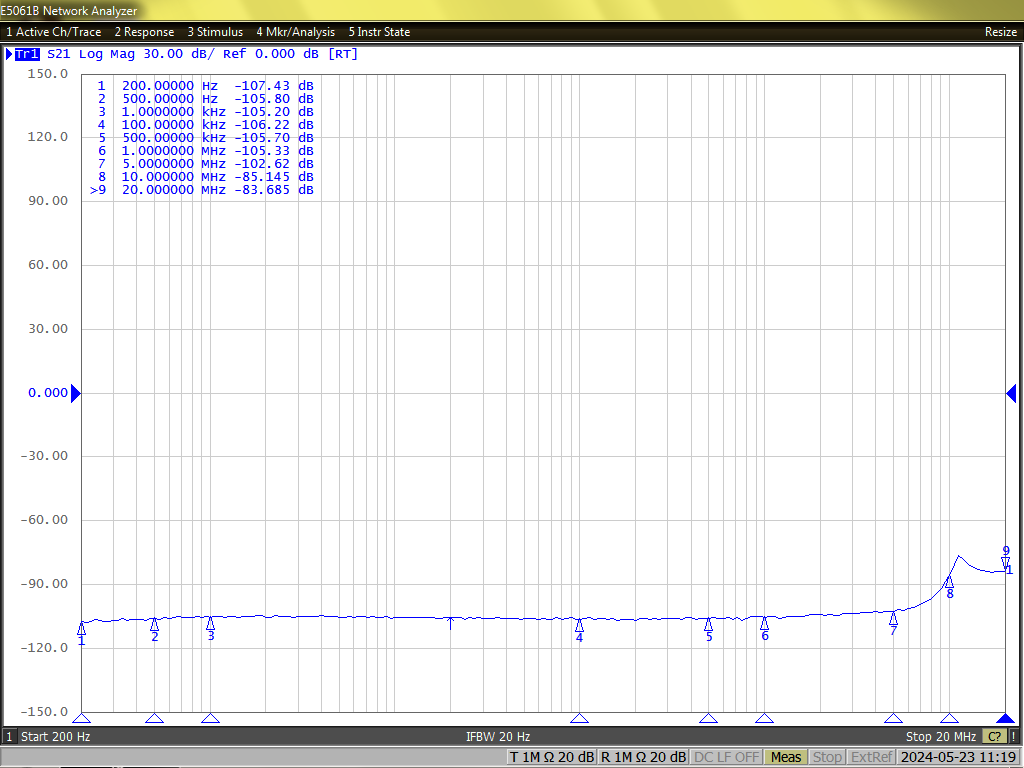

Frequency Range |
200Hz-20 MHz |
|
Output Impedance |
50 Ω |
Internal Length |
40 mm |
|
Maximum Peak Current |
20,000 A |
Foreign Minister |
116 mm |
|
Maximum Continuous Current (Effective Value) |
140 A |
Thickness |
40 mm |
|
Rise Time |
17.5 ns |
Interface Form |
BNC type |
|
Ampere Second Product |
1.2 A·s |
Working Temperature |
0 ℃ ~ 65 ℃ |
|
Effective Length** |
56 mm |
Weight |
0.7 kg |
*When the broadband current monitoring clamp is terminated at 50 Ω, the sensitivity (transfer impedance) is 0.005V/A;
**When measuring surface current, dividing the measured current value by the effective length of the probe is the surface current density, measured in A/m.
