The VSG 335 (XXX) voltage surge simulator is based on the company's third-generation control platform and is customized and developed as 1.2/50 μs according to customer testing needs voltage surge simulator. This product is suitable for the field of pulse withstand voltage testing, mainly used for surge testing of insulation, withstand voltage and other electrical properties of components and units. It can meet the requirements of IEC 61180-1, IEC 61180-2, IEC 60335-1, GB 4706.1 and other standards.
Features：
> 5.7 color touch screen；
> The maximum test voltage can reach 30 kV (different equipment may vary and can be customized according to customer needs)；
> Multiple output impedance options are available (different devices may vary and can be customized according to customer needs)；
> Test object leakage current breakdown alarm function；
Selection Guide
|

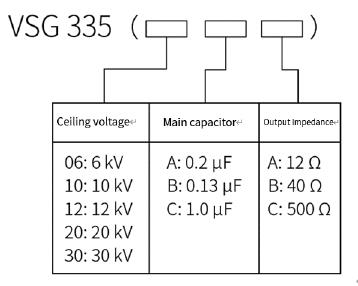

VSG 335(20CAC) Technical Parameter |
|
|
Test voltage range |
1 kV ~ 20 kV，±3% |
|
Front time |
1.2 μs±30% |
|
Half peak time |
50 μs±20% |
|
Source output impedance |
12Ω、500Ω |
|
Test object breakdown leakage current |
300 mA ~1200 mA |
|
Polarity |
Positive, negative |
|
Pulse period |
5 s ~ 99 s |
|
Number of tests |
1 ~ 10000 times |
|
Trigger Mode |
Automatic, manual, external triggering |
|
VSG 335(30BC) Technical Parameter |
|
|
Test voltage range |
3 kV ~ 30 kV，±3% |
|
Front time |
1.2 μs±30% |
|
Half peak time |
50 μs±20% |
|
Source output impedance |
500Ω |
|
Polarity |
Positive, negative |
|
Pulse period |
5 s ~ 99 s |
|
Number of tests |
1 ~ 10000 times |
|
Trigger Mode |
Automatic, manual, external triggering |
|
General parameters |
|
|
Display screen |
5.7 inch TFT touch screen |
|
Display screen |
AC 110 V/220 V ± 10%, 50 Hz/60 Hz ± 5% (default AC 220 V 50 Hz in mainland China) |
|
Display screen |
6 A |
|
Maximum power consumption |
200 W |
|
Chassis size |
19 inch 4U |
|
Instrument weight |
Approximately 20 kg |
|
Ambient temperature |
15 ℃ ~ 35 ℃ |
|
Relative humidity |
45% ~ 75% |
|
Atmospheric pressure |
86 kPa ~ 106 kPa |
|
Accessories |
|
Three core power cord, instruction manual, testing wire, grounding wire, fuse, short circuit plug |
|
Optional components |
|
PC control software CoreLab Supporting the Windows XP/7/8/10 operating system, it is easy to use, with a beautiful and intuitive user interface. The various operational functions and standard test libraries enable users to easily complete custom testing programs and help them flexibly produce test reports. |
