CDN 405AF4 Coupled decoupled networks used to evaluate the lightning-surge resistance of low-speed unshielded asymmetric communication lines. It can be used to test 100KBit/s Ethernet, and the strong decoupling capability can protect the auxiliary device (AE) from surges, ensuring repeatability of the test. The maximum surge voltage is 6KV. This CDN will meet the IEC/EN 61000-4-5:2017 standard upgrade. It is designed in accordance with IEC/EN 61000-4-5 FIG. 9 Unshielded asymmetric low-speed data line standards. Decoupling performance and transmission rate are stable, small size and easy to carry and use.
Features：
> Can be used to test 100K Bit/s rate;
> 1/2/3/4 Wire Unshielded wire to wire/wire to ground;
> Coupling waveform 1.2/50 μs, 8/20 μs;
> Maximum working current 2A;
> The interface specification is 4mm banana head;
> Compatible with foreign generator output ports for communication testing;
> Replace current limiting resistors, couplers and decoupling devices according to test requirements
|
Technical Parameters |
|
|
Project |
CDN 405AF4(Only 1.2/50, 8/20 waveforms included) |
|
Standard |
IEC/EN 61000 -4 -5 |
|
Coupled Waveform |
1.2/50μs、8/20μs |
|
Impulse Voltage |
6 kV |
|
Coupled Mode |
1/2/3/4 Wire Unshielded wire to wire/wire to ground |
|
Coupled Apparatus |
GDT90, TVS76, and C05 are optional |
|
Decoupling Device |
GDT90, TVS76, TVS 200, C250 optional |
|
Output Impedance |
One 40Ω impedance module |
|
Communication Interface Specification |
4 mm banana head |
|
Data Rate |
100 Kbit/s |
|
Working Voltage |
It is determined by coupling module and decoupling module |
|
Working Current |
Max. 2A |
|
Decoupling inductance |
20 mH |
|
Common Parameter |
|
|
Weight |
Approx 14 Kg |
|
Dimension |
475 mm×235 mm×195 mm (Length × width × height) |
|
Case Material |
Aluminum material |
|
Environment Temperature |
15 ℃ - 35 ℃ (Operating conditions) |
|
Relative Humidity |
45% - 75% (Operating conditions) |
|
Packaging Box |
carton |
|
Standard Accessories |
|
|
Test Line |
Test line number |
|
Current Limiting Module |
NR40 |
|
Data |
Original test certificate |
|
User Manual |
|
|
Tracking Generator Option |
|
|
CD-GDT90 |
Coupled apparatus GDT90（90V DC） |
|
CD-TVS76 |
Coupled apparatus TVS76 （76V DC） |
|
CD-C05 |
Coupler 0.5uF capacitor |
|
DP-GDT90 |
Decoupling device GDT90（90V DC） |
|
DP-TVS76 |
Decoupling device TVS76（76V DC） |
|
DP-TVS200 |
Decoupling device TVS200（200V DC） |
|
DP-C250 |
Decoupling device 250VAC capacitor |
Note: When purchasing a CDN network, you must purchase a coupler and decoupling device from the optional components to use the CDN network. In addition, the residual pressure is related to the type of decoupling device, and the waveform and amplitude of the residual pressure of different decoupling devices are different.
Optional device example:

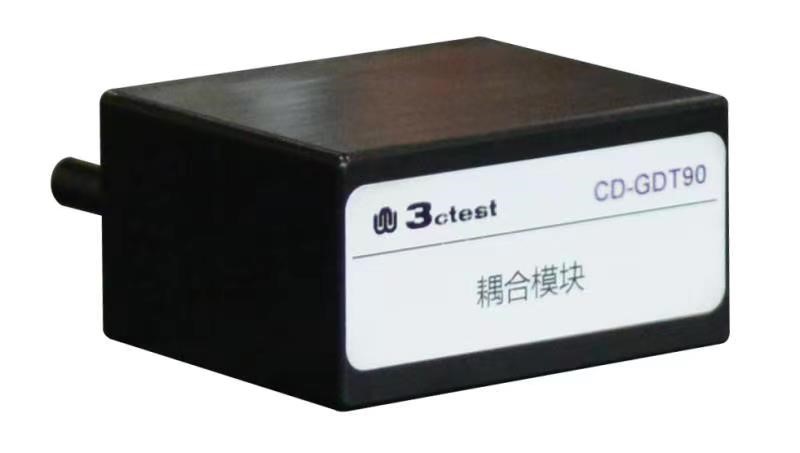

Coupler CD-GDT90

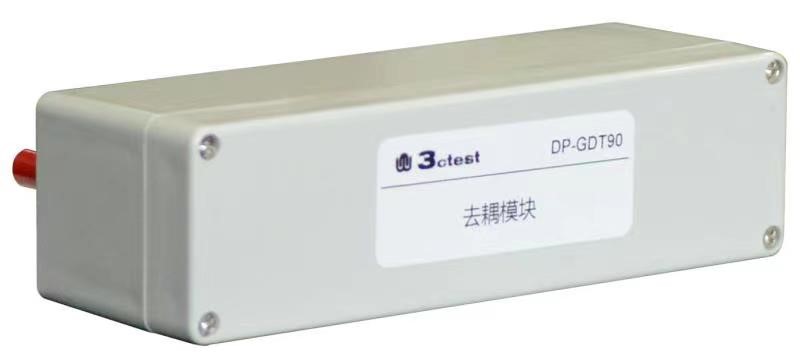

Decoupling device DP-GDT90
