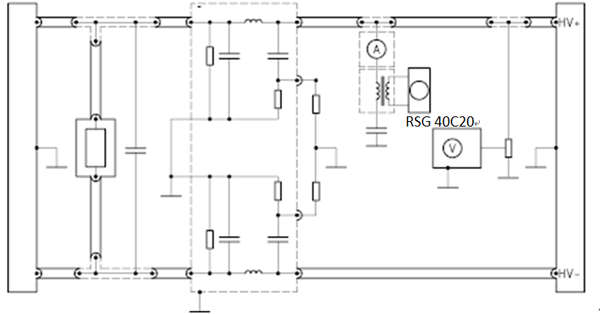

RSG 40C20 Technical Parameters |
|
|
Frequency |
10 Hz ~ 300 kHz |
|
Frequency step |
1 kHz for 3 kHz ~ 30 kHz; 10 kHz for 30 kHz~300 kHz; |
|
Open-circuit Test Pulse Voltage (Upp) |
Upp<=80 V(<50 kHz) Upp<=48 V(50 kHz ~ 150 kHz) Upp<=24 V(>=150 kHz) Resolution 0.1 V |
|
Ripple Dwell Time |
1 s ~ 10 s, resolution 0.1 s |
|
Output MAX |
40 Vp / 20 Ap |
|
Power |
MAX 800 W |
|
Working Power |
AC 220 V（±10%），50 Hz |
|
Dimension |
4 U |
|
Weight |
25 kg |
|
Ambient Temperature |
15 ℃ ~ 35 ℃ |
|
Relative Humidity |
45 % ~ 75 % |
|
Atmospheric Pressure |
86 kPa ~ 106 kPa |
|
Standerd Accessories |
|
|
User Manual, Test line, Earth line, 3-core power line, fuses (Spare parts), Factory report |
|
|
Optional Accessories |
|
|
1.Coupling transformer TPT-7637-4C100B
|
Umax: 15 V@10 Hz≤f≤3 kHz 25 V@3 kHz≤f≤30 kHz 2.5 V@30 kHz≤f≤300 kHz Primary current:32 A Secondary current:100 A Frequency:10 Hz ~ 300 kHz Size:440*190*585 mm Weight:60 kg |
|
2. Automotive Testing software Autolab |
> Compatible with Windows XP/7/8/10 OS; > Support of Ethernet interface; > Powerful test sequence function and one-key remote control; > Support of report export and user-defined test report template; > Emergency stop with one key makes operation safe; |
|
Note: 100 A system selection coupling transformer TPT-7637-4C100B; 300 A system selection coupling transformer TPT-7637-4C300B; 1000 A system selection coupling transformer TPT-7637-4C1000B(Need to be customized). |
|
