The high voltage piezoelectric performance test system for electric vehicles is suitable for the high voltage parts test of new energy vehicles in the voltage class DC 60 V ~ 1500 V. The electrical parameters and safety of high voltage components such as high voltage battery systems(HV battery system), DC/DC high and low voltage converters(DC / DC converter HV / LV), vehicle chargers(On-board charger), air conditioning compressors(Air conditioning compressor) can be verified through a series of electrical characteristic tests
EVTS 150C10 electric vehicle high voltage integrated measuring instrument supports DC 0 V ~ 1500 V voltage output, voltage slope control is greater than 250 V/ms, can complete the ISO 21498-2-2021 test project, but also can meet the LV 123 and VW 80300-2021 related test requirements. The system expansibility is strong.
Features:
> Voltage slope control greater than 250 V/ms;
> As per ISO 21498-2-2021、VW 80300_EN_2021 and LV 123;
> simulate various complex electrical environments of high-voltage components of new energy vehicles in practical application scenarios;
> Support DC 0 V ~ 1000 V / 1500 V voltage output, can edit waveform output, two-way power supply
> strong expansibility, and the power supply can be extended to 1 main N slave, so that the output current can achieve 60 A, 120 A, 240 A or more.
Electric vehicle high voltage performance test system equipment composition |
||||
Serial |
Name |
Instrument type |
summarize |
|
1 |
High voltage integrated performance tester for electric vehicles |
EVTS 150C10 |
Output voltage:0 ~ 1500 Vdc;Current:120 A; Power:60 kW(single power supply:30 kW / 60 A); Power/Current spreading : one master and N slave; Note: Select the parallel power module according to the actual power/current requirements; |
|
2 |
DC Decoupling Capacitor |
C150C30 |
>10 mF , MAX input voltage:1500 Vdc ; Current:120 A; |
|
3 |
High Voltage Manual Network |
AN 1501N |
Impedance:10 mΩ、25 mΩ、100 mΩ; Built-in capacitor: >10 mF; Output MAX voltage:1500 Vdc;Current:100 A; Note: Select a network model based on actual requirements; AN 150C30:300 A/1500 Vdc , no 10 mF capacitor; AN 150C70:700 A/1500 Vdc , no 10 mF capacitor; As per ISO 21498-2-2021; |
|
4 |
High Voltage Test Device |
HTS 1501 |
Impedance: 10 mΩ、25 mΩ、100 mΩ; Built-in capacitor: 10 mF; HTS 150C30:300 A/1500 Vdc , no 10 mF capacitor; As per VW 80300_EN_2021; |
|
5 |
Ripple Signal Generator |
RSG 40C20 |
Frequency:10 Hz ~ 300kHz; Power:800 W; Note: Select the corresponding generator model according to the actual power/current requirements; RSG 80C50: power 5 kW; RSG 80C100: power 10 kW; |
|
6 |
Coupling Transformer |
TPT-7637-4C100B |
Frequency: 10 Hz ~ 300kHz;Current:100 A; Note: Select the corresponding generator model according to the actual power/current requirements; TPT-7637-4C300B:current 300 A / 300 Hz ~ 300kHz TPT-7637-4C1000B:current 1000 A / 300 Hz ~ 300kHz |
|
7 |
Pulse Interference Generator for Electric Vehicle |
EVPG 20 |
As per VW 80300_EN_2021:EHV-10-02/EHV-16; Pulse amplitude:10 V ~ 200 V; DUT load capacity:1000 Vdc / 100 A; |
|
8 |
Automotive Immunity Test Software |
Autolab |
Automotive immunity test software |
|
9 |
Oscilloscope |
MDO 32 |
Bandwidth 1 GHz , sampling rate 5 GSa/s , 2 analog channels |
|
10 |
High Voltage Differential Probe |
THDP0200 |
Attenuation:50 X/500 X , bandwidth:200 MHz; MAX voltage: 1500 Vdc ; |
|
11 |
Current Probe |
PT-722 |
Frequency:DC ~ 200 kHz ; Current: 0.5 ~ 1000 A (4000 Ap -p) |
|
As per ISO 21498-2 -2021 |
||||
Test Item |
Test Type |
Match the Situation |
Required equipment |
|
6.2 DC supply voltage variation within operational range |
Immunity –voltage variation |
Complete satisfaction |
1.MDO 32 2.PT-722 3.Autolab 4.THDP0200 5.AN 1501N 6.RSG 40C20 7.EVTS 150C10 8.TPT-7637-4C100B |
|
6.3 Generated voltage slope |
Generation |
Complete satisfaction |
||
6.4 Immunity to voltage slope |
Immunity –voltage variation |
Complete satisfaction |
||
6.5 Generated voltage ripple |
Generation |
Complete satisfaction |
||
6.6 Immunity to voltage ripple |
Immunity –DC ripple |
Complete satisfaction |
||
6.7 Overvoltage |
Immunity –voltage variation |
Complete satisfaction |
||
6.8 Under voltage |
Immunity –voltage variation |
Complete satisfaction |
||
6.9 Voltage offset |
Immunity –voltage variation |
Complete satisfaction |
||
6.10 Generated load dump voltage |
Generation |
Complete satisfaction |
||
6.11 Immunity to load dump voltage |
Immunity –voltage variation |
Complete satisfaction |
||
Note : System scheme selection configuration is divided into three categories , 100A system , 300 A system , and 700 A system. Large current can be compatible with small current test. All equipments are at the same current range . AN 1501N built-in 10 mF capacitor , so C150C10 is not needed. |
||||
As per ISO LV 123 |
||||
Test Item |
Test Type |
Match the Situation |
Required equipment |
|
10.4.1 Range of unlimited operating capability |
Immunity –voltage variation |
Complete satisfaction |
1.MDO 32 2.PT-722 3.Autolab 4.THDP0200 5.AN 1501N 6.RSG 40C20 7.EVTS 150C10 8.TPT-7637-4C100B |
|
10.4.2 Range of upper limited operating capability |
Immunity –voltage variation |
Complete satisfaction |
||
10.4.3 Range of lower limited operating capability |
Immunity –voltage variation |
Complete satisfaction |
||
10.4.4 Range of highly limited operating capability |
Immunity –voltage variation |
Complete satisfaction |
||
10.4.5 Generated voltage ripple |
Immunity –voltage variation |
Complete satisfaction |
||
10.4.6 Immunity to voltage ripple |
Immunity –DC ripple |
Complete satisfaction |
||
10.4.7 Overvoltage |
Immunity –voltage variation |
Complete satisfaction |
||
10.4.8 Undervoltage |
Immunity –voltage variation |
Complete satisfaction |
||
10.4.9 Load dump |
Immunity –voltage variation |
Complete satisfaction |
||
10.4.10 Voltage offset |
Immunity –voltage variation |
Complete satisfaction |
||
10.4.11 Interaction between low-pressure and high-pressure systems |
Function test |
Power supply only |
||
Note: LV 123 is benchmarking ISO 21498-2-2021. |
||||
As per VW 80300 |
||||
Test Item |
Test Type |
Match the Situation |
Required equipment |
|
EHV-01 Performance test within the regular HV operating voltage range |
Immunity –voltage variation |
Complete satisfaction |
1.MDO 32 2.PT-722 3.Autolab 4.THDP0200 5.HTS 1501 6.RSG 40C20 7.EVTS 150C10 8.TPT-7637-4C100B |
|
EHV-02 Operating within the HV overvoltage range |
Immunity –voltage variation |
Complete satisfaction |
||
EHV-03 Operation within the HV undervoltage range |
Immunity –voltage variation |
Complete satisfaction |
||
EHV-04 Pre-charging |
Function test |
Unsatisfied |
||
EHV-05 Generated HV voltage dynamics |
Generation |
Complete satisfaction |
||
EHV-06 System HV voltage dynamics |
Immunity –voltage variation |
Complete satisfaction |
||
EHV-07 HV voltage dynamics of energy storage devices |
Battery test |
Unsatisfied |
||
EHV-08 Generated HV voltage ripple |
Generation |
Complete satisfaction |
||
EHV-09 System HV voltage ripple |
Immunity –DC ripple |
Complete satisfaction |
||
EHV-10 System load dump |
Immunity –pulse |
Complete satisfaction |
||
EHV-11 HV voltage offset |
Immunity –pulse |
Complete satisfaction |
||
EHV-12 HV overcurrent |
Current variation |
Power supply only |
||
EHV-13 HV service life |
Periodic test |
Power supply only |
||
EHV-14 On/off durability testing for HV components |
Periodic test |
Power supply only |
||
EHV-15 Functionality of HV interlock, maintenance connecter, and crash signaling |
Function test |
Power supply only |
||
EHV-16 HV pulse |
Immunity –pulse |
Complete satisfaction |
||
Note: 1. System scheme selection configuration is divided into three categories , 100A system , 300 A system , and 700 A system. Large current can be compatible with small current test. All equipments are at the same current range . HTS 1501(As per VW 80300) is different from AN 1501N(As per ISO 21498). 2. EHV-04 Pre-charging: Confirmation of functional state when components of pre-charging function work. 3. EHV-07 HV voltage dynamics of energy storage devices: The sudden change of current is realized by changing the load. 4. EHV-12 HV overcurrent: Changing the output load of DUT to increase the current by 3 times. 5. EHV-13 HV service life: Programmable AC/DC power supply frequency to 40 KHz. 6. EHV-14 On/off durability testing for HV components: Reliability test. |

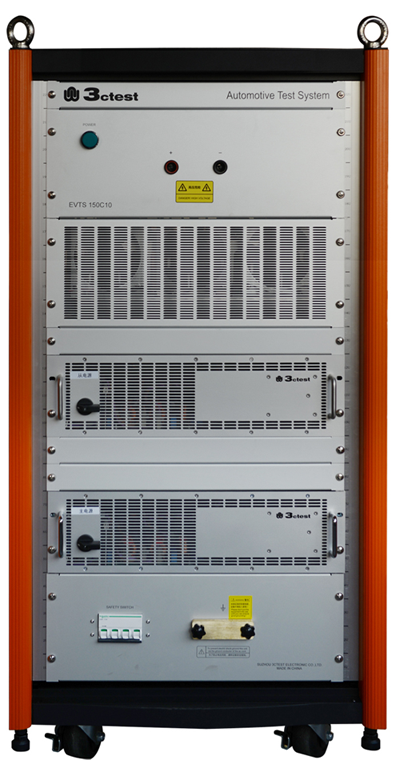

Electric vehicle high-voltage electrical performance comprehensive tester EVTS 150C10
Technical Parameters |
||
MAX DC voltage |
1500 VDC |
|
MAV current |
120 A |
|
MAX power |
60 kW |
|
Number of power modules |
2(single :30 KW / 60 A) |
|
Overvoltage protection |
0 ~ 1650 V |
|
Overcurrent protection |
0 ~ 132 A |
|
Overpower protection |
0 ~ 66 kW |
|
Output voltage range |
0 ~ 1500 V |
|
Internal resistance |
0/50/100/200 mΩ |
|
Pulse |
Sine,RAMP |
|
Amplitude and position change |
Static , line |
|
maximum number of supported segments |
99 |
|
count |
1 ~ 999 |
|
Expand |
Current and power are supported, 1 master and N slaves |
|
Voltage load dump |
||
MAX current |
100 A |
|
Size |
22 U(more than 3 models for 35 U) |
|
Note: 1. One master and one slave, MAX current 120 A , suitable for 100 A system , if you need higher current , please expand the number of power supply modules. 2. 300 A current system , internal resistance is external. |
||

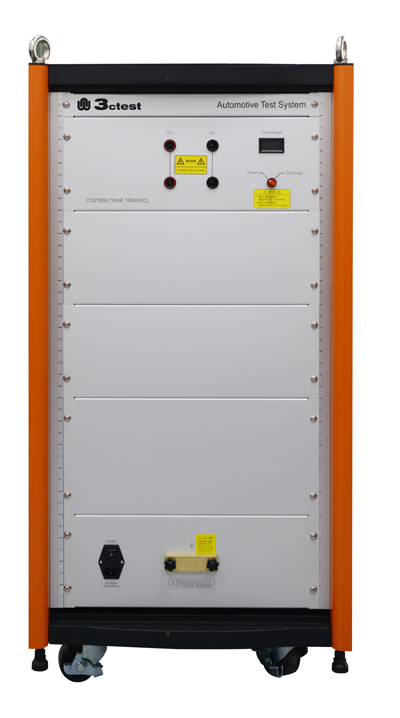

DC Decoupling Capacitor C150C30
Technical Parameters |
|
MAX input voltage |
1500 VDC |
MAX current |
300 A |
Capacitor |
>10 mF |
Working Power |
AC 110 V/220 V(±10 %),50 Hz /60 Hz (Default in mainland China:220 V) |
Fuse |
6 A |
Max. Power |
100 W |
Size |
22 U |
Weight |
70 kg |
High Voltage Manual Network AN 1501N
Technical Parameters |
|
MAX input voltage |
1500 VDC |
MAX current |
100 A |
Transient MAX current |
280 A |
INPUT/OUTPUT terminal |
4 mm banana or high voltage shielded |
Internal resistance |
10/25/100 mΩ |
Inductance |
1 μH |
Decoupling capacitor |
>10 mF |
Grounding capacitor |
1 μF |
Frequency |
10 Hz ~ 150kHz |
Working Power |
AC 220 V(±10 %),50 Hz |
Fuse |
6 A |
Max. Power |
250 W |
Size |
22 U |
Weight |
178 kg |
Note: High Voltage Manual Network as per ISO 21498-2-2021, a total of three impedances, it is suitable for 100 A current system. |
High Voltage Test Device HTS 1501
Technical Parameters |
|
MAX input voltage |
1500 VDC |
MAX current |
100 A |
Decoupling capacitor |
10 mF (±10 %) |
Box inductance |
2*1 μH (±10 %) |
Internal resistance |
50 mΩ ( -2/+6 mΩ ) 100 mΩ (±10 %) 200 mΩ (±10 %) |
Cy |
100 nF (±10 %) |
Voltage monitoring |
Digital tube display voltage value |
Frequency |
10 Hz ~ 150kHz |
Working Power |
AC 220 V(±10 %),50 Hz |
Fuse |
6 A |
Max. Power |
500 W |
Size |
22 U |
Weight |
75 kg |
Note: High Voltage Manual Network as per VW 80300_EN_2021, a total of three impedances, it is suitable for 100 A current system. |

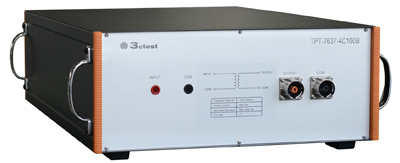

Coupling Transformer TPT-7637-4C100B
Technical Parameters |
|
MAX unsaturated voltage |
15 V@10 Hz≤f≤3 kHz 25 V@3 kHz≤f≤30 kHz 2.5 V@30 kHz≤f≤300 kHz |
Primary current |
MAX 32 A |
EUT current |
MAX 100 A |
Frequency |
10 Hz ~ 300kHz |
Size |
4 U |
Weight |
60 kg |
Note: the maximum EUT current is 100 A, suitable for 100 A current system. |

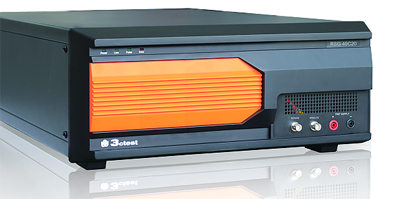

Ripple Signal Generator RSG 40C20
Technical Parameters |
|
Frequency |
10 Hz ~ 300kHz |
Frequency step |
3 kHz ~ 30 kHz, step: 1 kHz 30 kHz ~ 300 kHz, step:10 kHz |
MAX voltage Upp |
f<50 kHz,Upp≤80 V 50 kHz ≤f<150 kHz,Upp≤48 V 150 kHz ≤f≤300 kHz,Upp≤24 V resolution ratio 0.1 V |
Residence time |
1 s ~ 10 s resolution ratio 0.1 s |
Power |
800 W |
Output |
MAX 40 Vp /20 Ap |
Working Power |
AC 220 V(±10 %),50 Hz |
Size |
4 U |
Weight |
25 kg |
Note: the power of ripple signal generator is 800 W, suitable for 100 A current system. |

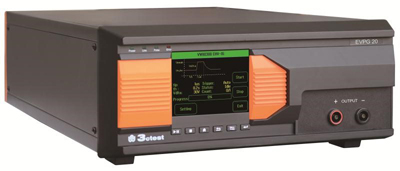

Pulse Interference Generator for Electric Vehicle EVPG 20

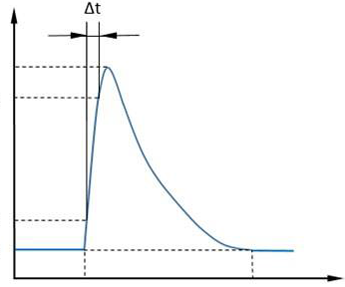

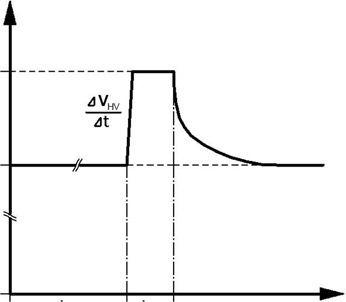

Technical Parameters(EHV-10-02) |
|
Pulse characteristics |
Double exponential wave |
Pulse voltage amplitude |
10 V ~ 50 V ±20 % 50 V ~ 200 V ±10 % |
Pulsewidth |
≥50 μs (0 % ~ 0%) |
Rise time (0 % ~ 100 %) |
6.67 μs±20 % (3000 V/ms @20 V) |
Impedance |
2 Ω |
Interval time |
1 s ~ 99 s |
Polarity |
Positive |
count |
1 ~ 99 |
Trigger |
Manual/Auto/External |
Coupling method |
Capacitor |
Decoupling method |
Diode |
DUT loading capacity |
1000 VDC/100 A |
Note: The current of DUT loading capacity is 100 A, larger current system needs to be customized. |
|
Technical Parameters(EHV-10-02) |
|
Pulse characteristics |
Double exponential wave |
Pulse voltage amplitude |
10 V ~ 50 V ±20 % 50 V ~ 200 V ±10 % |
Pulsewidth |
10 μs ~ 20 μs ±20 % 20 μs ~ 200 μs ±10 % |
Rise time (0 % ~ 100 %) |
≤300 ns (<5 V/ns) |
Impedance |
2 Ω |
Interval time |
0.1 s ~ 10 s |
Polarity |
Positive |
count |
1 ~ 99 |
Trigger |
Manual/Auto/External |
Coupling method |
Capacitor |
Decoupling method |
Diode |
DUT loading capacity |
1000 VDC/100 A |
Note: The current of DUT loading capacity is 100 A, larger current system needs to be customized. |
100 A , 300 A , 700 A system configuration table :
1 |
Ripple Signal Generator |
RSG 40C20 |
RSG 80C50 |
RSG 80C100 |
Frequency |
DC / 10 Hz ~ 300 kHz |
|||
Power |
800 W |
5000 W |
10000 W |
|
Output Max |
80 Vpp / 40 App |
160 Vpp / 100 App |
160 Vpp / 800 App |
|
Signal Generator |
Inside , one channel , frequency : 0 ~ 300 kHz |
|||
Note |
This ripple generator is mainly aimed at the test requirements of high-impedance and high voltage parts of new energy. |
This ripple generator is mainly aimed at low impedance and high power generators such as new energy and high voltage battery packs to meet the test requirements. |
||
2 |
High Voltage Manual Network |
AN 1501N |
AN 150C30 |
AN 150C70 |
Output channel |
2 |
|||
EUT supply |
100 A / 1500 Vdc |
300 A / 1500 Vdc |
700 A / 1500 Vdc |
|
Frequency (At EUT terminal) |
10 Hz ~ 150 kHz |
10 Hz ~ 150 kHz |
10 Hz ~ 150 kHz |
|
3 |
Coupling Transformer |
TPT-7637-4C100B |
TPT-7637-4C300B |
TPT-7637-4C1000B |
Frequency range |
10 Hz ~ 300 kHz |
300 Hz ~ 300 kHz |
||
Coupling current |
100 A |
300 A |
1000 A |
|
Turn ratio |
1:1 |
1:1 |
2:1 & 4:1 |
|
4 |
Decoupling capacitor |
Built-in AN 1501N at 100 A system |
C150C30 |
|
Load current |
100A |
300 A |
|
|
Value |
>10mF(Built-in instantaneous disconnection load shedding emission test function and automatic active charge and discharge circuit) |
|||
5 |
High Voltage Test Device |
HTS 1501 |
HTS 150C30 |
|
Load current |
100 A |
300 A |
|
|
6 |
Pulse Interference Generator for Electric Vehicle |
EVPG 20 |
|
|
Load current |
100 A |
|
|
|
7 |
Vehicle immunity test software |
Autolab |
||
Fouction |
Software for remote control of ripple signal generator, including pre-programmed standard and test library, enhanced analysis and report generation. At the same time, it can be compatible with the immunity testing equipment of automobile parts. |
