HOME>Products>EMC General Test Equipments>ESD Simulators >High Voltage Divider EDS-HVM30

High Voltage Divider EDS-HVM30

Model：EDS-HVM30

Profile

The high voltage divider EDS-HVM30 is designed in accordance with IEC/EN 61000-4-2 Ed.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The high voltage divider EDS-HVM30 is designed in accordance with IEC/EN 61000-4-2 Ed. 2 and is used for measuring whether the output voltage under air discharge mode of ESD tests meets the standard requirement.

Features:
> In compliance with IEC 61000-4-2;
> Test voltage up to 30 kV;
> Impedance 20GΩ // 3 pF;

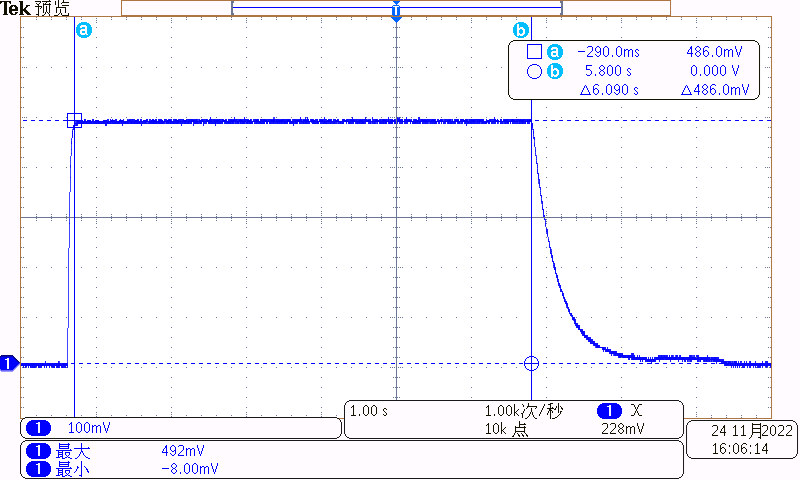

10 kV positive air discharge

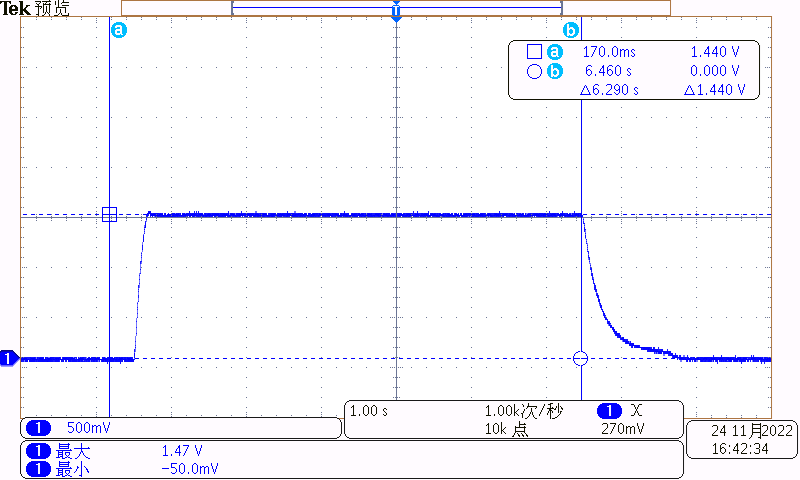

30 kV positive air discharge

ISO 10605
IEC 61000-4-2
EN 61000-4-2

Technical parameters
Standard	IEC 61000-4-2
Test voltage	Max. 30kV
Discharge mode	Air discharge
Impedance	20GΩ // 3 pF
Attenuation Ratio	20651:1 (reference value)
Weight	1 kg

Accessories

Coaxial cable, test line
