The CDN 405CAN is used for surge tests on shielded unsymmetric CAN and LIN cable in accordance with IEC/EN 61000-4-5:2017. The surge voltage could up to 6 kV, its decoupling function could prevent the auxiliary equipment (AE) from the surge interference.
Features：
> Used for CAN cable of charging point and twisted cable type 485;
> For waveform 1.2/50 s, 8/20 μs;
> Coupling mode CAN H +CAN L both to earth / LIN to earth
> Transmission rate CAN cable 10Mbit/s, LIN cable 100 Kbit/s;
> Max. working current 2 A;
> AE/ EUT port: 4 mm banana plug;

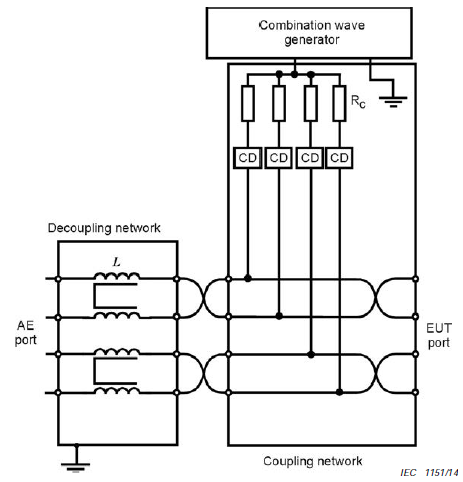

Design Schematic Diagram 1:
Figure 9 of IEC 61000-4-5：2017

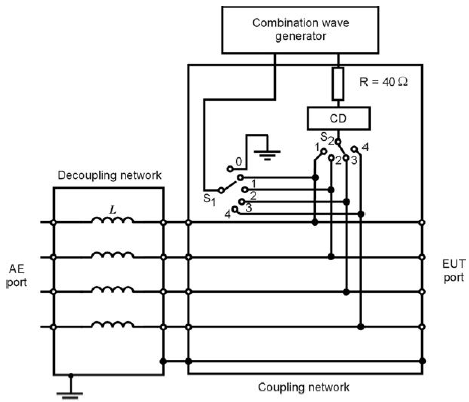

Design Schematic Diagram 2:
Figure 10 of IEC 61000-4-5：2017
|
Technical parameters |
|
|
Coupling Waveform |
1.2/50 μs, 8/20 μs |
|
Pulse Voltage |
6 kV |
|
Coupling Mode |
CAN H+CAN L both to earth / LIN to earth |
|
Coupling Device |
GDT |
|
Current limiting resistance |
40 Ω ± 5% |
|
Communication Interface |
4 mm banana plug |
|
Transmission Rate |
CAN: 10 Mbit/s LIN: 100 Kbit/s |
|
Working Voltage |
Max. 12V DC |
|
Working Current |
Max. 2 A |
|
Decoupling Inductance |
20 mH |
|
Residual Voltage |
＜90V |
|
General Parameters |
|
|
Weight |
Approx. 10 kg |
|
Dimension |
360 mm(L)×220 mm(W)×135 mm(H) |
|
Shell Material |
Aluminum |
|
Operating Temperature |
15 ℃ - 35 ℃ |
|
Operating Humidity |
45% - 75% |
|
Package |
Carton |
|
Standard Accessories |
|
Test line, User manual, Short-connect plug |
