The variable-frequency magnetic field immunity simulator MFS AP series is designed to conduct magnetic field immunity test of electrical and electronic products with high reliability as per IEC/EN 61000-4-8. It can offer accurate reference for EUT during power frequency magnetic field immunity test. It is mainly to simulate the magnetic environment in residence, commercial and industrial district, power station, and low and high substation.
Features:
> 5.7” color touch screen front panel;
> Fully in compliance with IEC 61000-4-8 test requirements;
> Electromagnetic relay protection with voltage/current higher than rated values;
> Over-temperature protection;
> Test sequencing via control software AutoLab;
> Ethernet RJ45 for PC remote control;
> Easy test report generation;

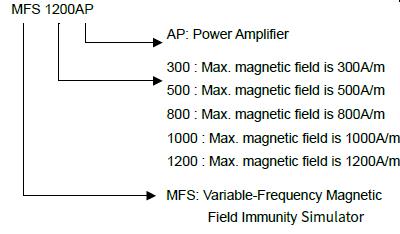

Naming Rule:

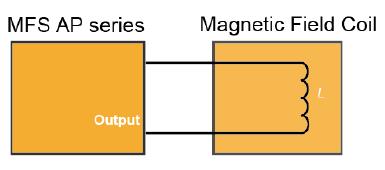

Test Connection:
|
Technical Parameters |
|
|
Max. Output Value of Simulator |
±60 V, ±30 A |
|
Magnetic Field strength |
TYX 130 (0-300 A/m 0-240 Hz) TYX 150 (0-500 A/m 0-65 Hz) TYX 180 (0-800 A/m 0-65 Hz) TFX 180 (0-800 A/m 0-65 Hz) TYX 1100 (0-1000 A/m 0-50 Hz) |
|
Tolerance |
<10% |
|
Magnetic Field |
Adjustable frequency, 400 Hz is customized |
|
External Sync. |
0-359°, resolution 1° |
|
Current Distortion |
<5% |
|
Pulse Interval |
1-9999 s |
|
Test Duration |
1-28800 s |
|
Coil Shape and Dimension |
Magnetic Coil or Helmholtz Coil Rectangular coil (1 m×1 m) or round coil (φ1 m) |
|
General Parameter |
|
|
Display screen |
5.7 inch TFT touch screen |
|
Operating power supply |
110 V / 220 V, ±10%, 50/60 Hz (AC 220 V 50 Hz by default) |
|
Fuse |
6 A |
|
Max. Power consumption |
100 W |
|
Memory space |
Infinite（PC） |
|
External Control Mode |
D-sup 25 pin |
|
Working Status Indication |
LED indication and LCD display on front panel |
|
Grounded Mode |
Green-yellow grounded line |
|
Dimension |
19 inch/6U/4U |
|
Weight |
Approx. 28 kg |
|
Operating temperature |
15–35 ℃ |
|
Operating humidity |
45%–75% |
|
Operating air pressure |
86 kPa – 106 kPa |
|
Standard Accessories |
|
|
Power supply cable, EUT power supply cable, Network cable, Power cord, Grounding wire 5 meters, Factory test report, Warranty report, User manual |
|
|
Optional Accessories |
|
|
Magnetic Coil |
TYX 130（300 A/m） TYX 150（500 A/m） TYX 180（800 A/m） TFX 180(0-800 A/m) TYX 1100（1000 A/m） |
|
Helmholtz Coil |
TYXH 130（300 A/m） TYXH 150（500 A/m） TYXH 180（800 A/m） TYXH 1100（1000 A/m） |
