> Save waveform into png./ bmp. format and make comparison with saved reference waveform;
Detailed Introduction of
Highlights

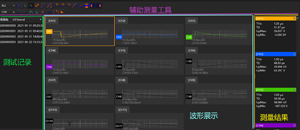

n Multiple oscilloscopes can be connected
for waveform data acquisition simultaneously and real-time display;

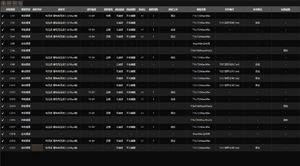

n Up to 20 channels (including logical
channel) can be configured;

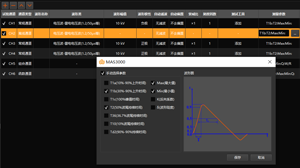

n Plenty of waveform computing function,
including computing time waveform head and tail, peak value, waveform energy
and duration etc.;

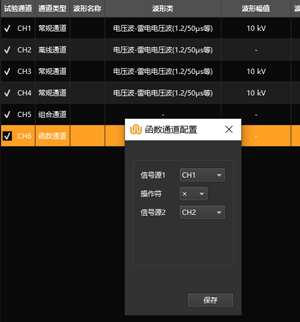

n Function channel: energy computing of
random combined waveform;

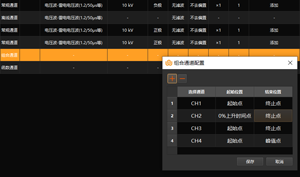

n Combination channel: any channel
waveform can be combined and jointed;

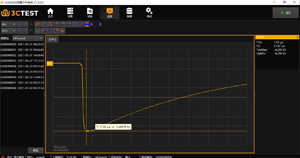

n Feature point can be manually modified
for peak value calculation to revise output result;
