Line Impedance Stabilization Network LISN ML500HVS

Model：LISN ML500HVS

Profile

The line impedance stabilization network LISN ML500HVS is designed as per GJB151B and MIL-STD-461 and used for isolating power interference and provide specified power impedance for EUT: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The LISN ML500HVS is designed as per GJB151B and MIL-STD-461 and used for isolating power interference and provide specified power impedance for EUT, its impedance fully meets the standard requirements. When using, an EUT is connected to the output terminal, while power is connected to the Input terminal. EMI measurement terminal is standard type N interfaces.

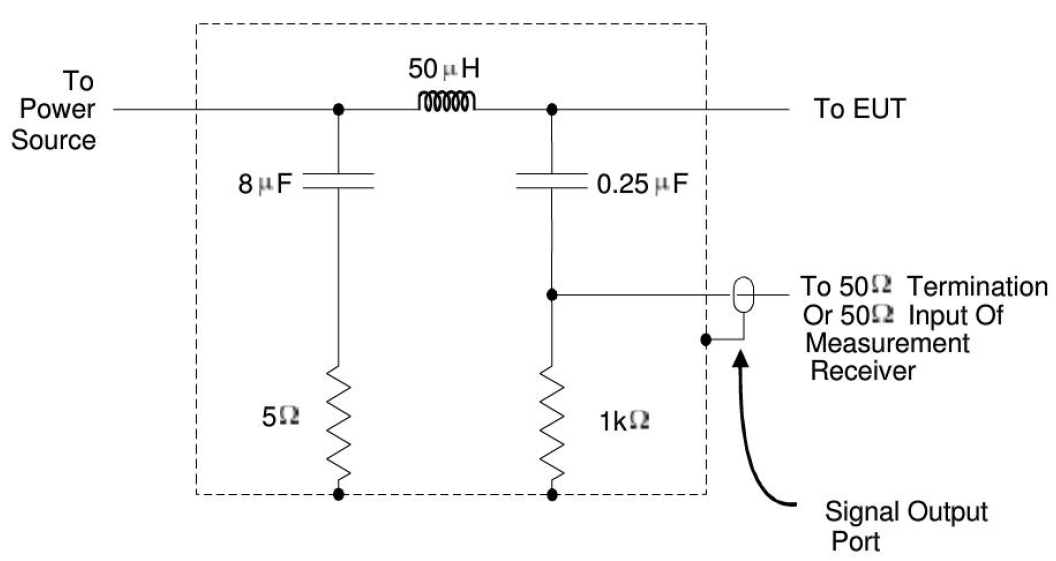

Schematic Diagram：

GJB 151B
MIL-STD-461

Technical parameters
Test Voltage (Vmax)	1000 V DC, 380 V 50 Hz/60Hz
Test Current（Imax）	500 A
Test Terminal	Type N
Inductance	50 μH
Impedance	50 μH+5 Ω‖50 Ω
Coupling Capacitor	0.25 μF
Impedance Frequency Range	9 kHz-30 MHz
General parameters
Power supply	AC 110/220 V, ±10%, 50 Hz/60 Hz (±5%) (Default AC 220 V 50 Hz in mainland China)
Dimension	310 mm310 mm870 mm (LWH)
Ambient Temperature	15 ℃~ 35 ℃
Relative Humidity	45% ~ 75%
Weight	Approx. 55 kg

Accessories

User manual, Calibration jig, Earth terminal, Rotary knob
