Technical Parameters |
|
|
Test Voltage Range |
0.5 kV ~12 kV, ±10% |
|
1 kV ~20 kV, ±10% |
|
|
3 kV ~30 kV, ±10% |
|
|
Front Time |
1.2 μs±30% (30% ~ 90%) *1.67 |
|
Time to half-value |
50 μs±20% (origin ~ 50%) |
|

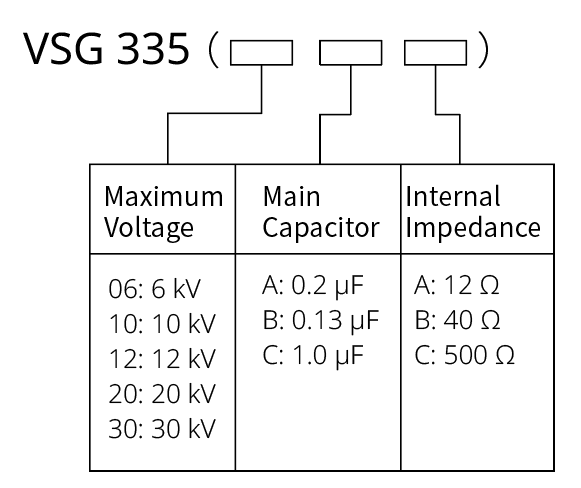

Internal resistor |
12 ohm, 40 ohm, 500 ohm (internal resistor is customizable) |
|
Spark-over Current |
100 mA ~1200 mA |
|
Output Polarity |
Positive, negative, first positive and then negative |
|
Impulse Period |
5 s ~ 99 s |
|
Number of Tests |
1~10000 |
|
Trigger Mode |
AUTO/Manual/External trigger |
|
General Parameters |
|
|
Touch Screen |
5.7” touch screen |
|
Working Power |
AC 110 V/220 V±10%，50 Hz/ 60 Hz, ±5% (Default AC 220 V 50 Hz in mainland China) |
|
Fuse |
6 A |
|
Max. Power Consumption |
200 W |
|
Dimension |
19”/ 4U/ 6U |
|
Weight |
Approx. 20 kg |
|
Ambient Temperature |
15 ℃~35 ℃ |
|
Relative Humidity |
45% ~ 75% |
|
Atmospheric Pressure |
86 kPa ~ 106 kPa |
|
Accessories |
|
Three-core Power line, User manual, Test line, Ground line, Fuses, Radiated frequency cable |
|
Option |
|
Corelab control software: support Windows XP/7/8/10 OS; Easy to operate; Intuitive user interface; predefined standard library and test sequence function; support test report generation. |
