HOME>Products>Automotive EMC Test Equipments>ISO 7637-4 >High Voltage Shielded Enclosure HVSE 200

High Voltage Shielded Enclosure HVSE 200

Model：HVSE 200

Profile

The HVSE 200 is applied to the common mode/differential mode testing switching of Waveform A and Waveform C specified in ISO 7637-4. Through plugging in corresponsive port, HVSE 200 can save users from complicated wiring.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The HVSE 200 is applied to the common mode/differential mode testing switching of Waveform A and Waveform C specified in ISO 7637-4. Through plugging in corresponsive port, HVSE 200 can save users from complicated wiring. With features of easy operation and good shielded effect.

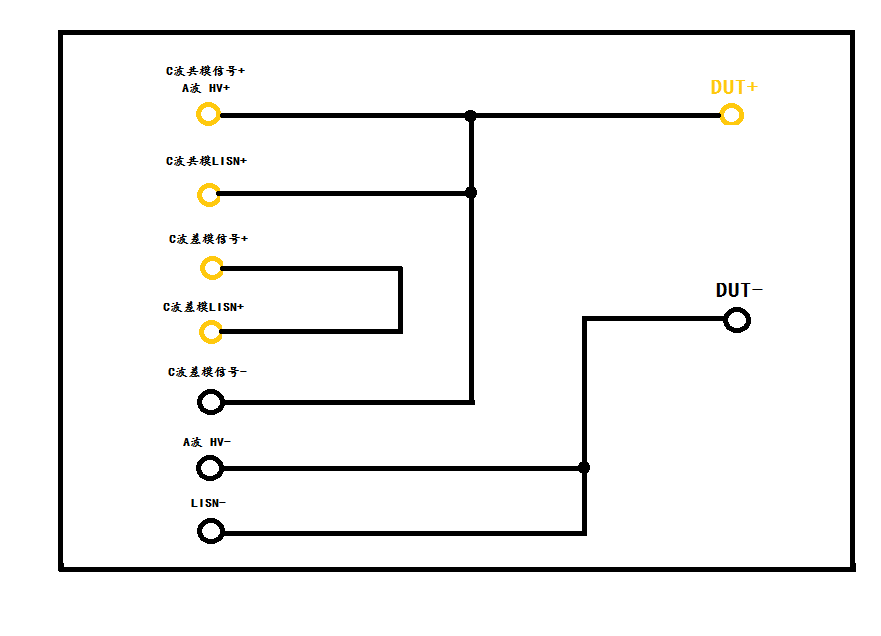

Internal Schematic Diagram：

Technical Parameters
Port on Front Panel	Waveform A and Waveform C common/differential mode testing port
Port on Rear Panel	DUT Output
Shielded Effect	＞80 dB
Ambient Temperature	15 ℃~35 ℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa
Dimension	380 mm （L）×300 mm（W）×165 mm（H）
Weight	Approx. 9.6 kg
Material	Aluminum
