HOME>Products>Automotive EMC Test Equipments>Transient Immunity Simulator >Current Injection Clamp BCIP7637-3

Current Injection Clamp BCIP7637-3

Model：BCIP7637-3

Profile

BCIP 7637-3 Current injection clamp is a wideband current coupling device, which can transfer the time-harmonic signal current or pulse signal current to the test device (EUT): PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

BCIP 7637-3 Current injection clamp is a wideband current coupling device, which can transfer the time-harmonic signal current or pulse signal current to the test device (EUT) through magnetic coupling. It has the characteristics of waveform distortion free and physical isolation from EUT. It meets the needs of current injection standards such as ISO 7637-3-2007/2016 and is widely used in electromagnetic compatibility conduction sensitivity (immunity) testing.

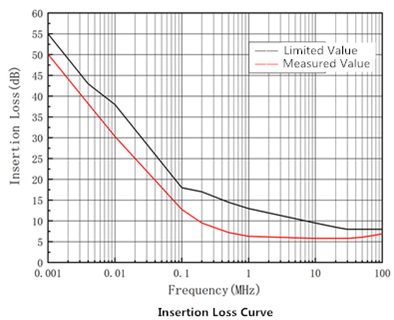

BCIP 7637-3 current injection clamp insertion loss curve

ISO 7637-3:2007/2016

Technical Parameters
Frequency	4 kHz - 100 MHz
Maximum Input Power	100 W for 30 minutes
Connector Type	N type
Internal Diameter	40 mm
External Diameter	127 mm
Height	90 mm
Weight	3.12 Kg

Product Accessories
Current injection clamp calibrates the fixture	BCICF-200
