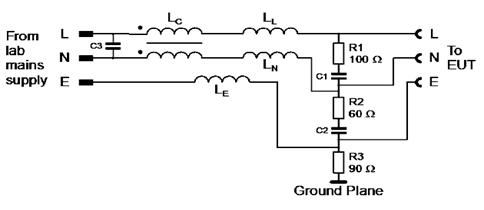

Standard Schematic Diagram:
|
Technical Parameters |
||
|
Item |
VHF-LISN NBM3-16 |
|
|
Standard |
CISPR16-1-4 Ed.3.2 |
|
|
Frequency Range |
30 MHz-300 MHz |
|
|
Max, AC Voltage（L-PE） |
250 V |
|
|
Max. DC Voltage（L-PE） |
400 V |
|
|
Max. Current |
16 A |
|
|
EUT Port Type |
4 mm Banana(L/N/PE) |
|
|
AE Port Type |
4 mm Banana(L/N/PE) |
|
|
Input Impedance（EUT End） |
||
|
L line 30 MHz to 300 MHz |
250Ω ± 20 % |
|
|
N line 30 MHz to 300 MHz |
150Ω ± 20 % |
|
|
PE line 30 MHz to 300 MHz |
90Ω ± 20 % |
|
|
Phase（EUT End, L line, N line） |
||
|
30 MHz to 108 MHz |
0 ± 11.5° |
|
|
108 MHz to 300 MHz |
0 ± 25.0° |
|
|
Isolation (AE-EUT) |
||
|
30 MHz to 300 MHz |
> 40 dB |
|
|
General Parameters |
||
|
Dimension |
250 mm (L) ×16 mm (W) ×10 mm（H） |
|
|
Weight |
4.0 kg |
|
|
Ambient Temperature |
15 ℃–35 ℃ |
|
|
Relative Humidity |
45%–75% |
|
|
Atmosphere Pressure Range |
86 kPa–106 kPa |
|
|
Accessories Supplied with Product |
|
Operating Manual, Factory Test Report, Testing Cables, Fuse |
