The high-power short-time overcurrent simulator ICG 3000 series is a test instrument designed according to ANCI C12.02-2001 standard, which is suitable for detecting the disturbance immunity of the power meter at 50Hz/60Hz power frequency. The product also meets the test requirements of GB/T17215.301 and GB/T17215.322.
Features：
> Emergency protection button;
> LCD display, current measurement and acquisition system;
> Built-in high-power voltage regulator, CPU intelligent control;
> Imported high-power IGBT semiconductor switch, safe and stable;
> Both GB/T17215.301 and GB/T17215.322 are met.

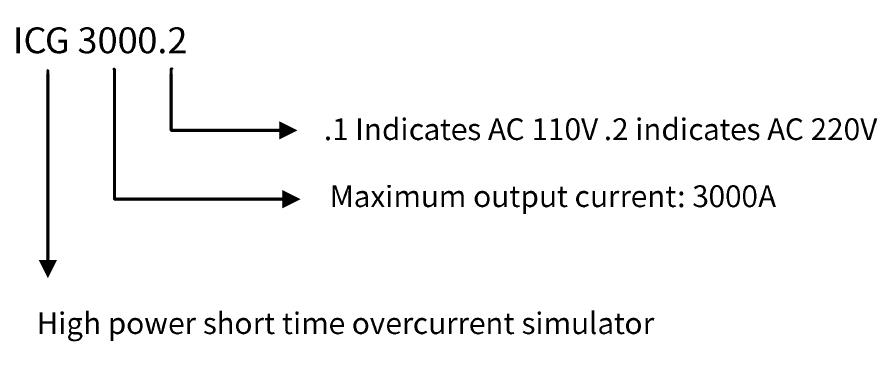

Naming rule：
|
Technical Parameters |
|
|
Input Voltage |
ICG3000.1：AC 110V 120A |
|
ICG3000.2：AC 220V 63A |
|
|
Output Voltage |
0.01 ～ 3V |
|
Output Current |
10 ～ 3000A |
|
Output Current Accuracy |
0 ～ -10% |
|
Output Waveform |
Sine wave |
|
Output Frequency |
50Hz/60Hz |
|
Current Injection Time |
8ms ~ 9999ms or 0.5 ~ 500 cycles |
|
Generator Output Impedance |
0.001Ω |
|
Output Phase Angle |
0° |
|
Test Interval |
1 ～ 9999s |
|
Test Number |
1 ～ 9999 |
|
Test Mode |
Manual, automatic |
|
General Parameters |
|
|
Supply Voltage |
AC110V/220V，(±10%)，50Hz/60Hz (220 V in mainland China） |
|
Environment Temperature |
15 ～ 35℃ |
|
Relative Temperature |
25 ～ 75% |
|
Barometric Pressure |
86kPa ～ 106kPa |
|
Boundary Dimension |
ICG3000.1：22U*2 |
|
ICG3000.2：22U |
|
|
Weight |
ICG3000.1：约200kg |
|
ICG3000.2：约273kg |
|
|
Accessories |
|
One host, manual, test report, warranty, test wire, power cord, ground wire, fuse |
