Electromagnetic Clamp EM CL100

Model：EM CL100

Profile

Electromagnetic clamp EM CL100 is designed for the conducted immunity tests of cables for radio-frequency magnetic field disturbances as per IEC 61000-4-6.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

EM CL100 is designed for the conducted immunity tests of cables for radio-frequency magnetic field disturbances as per IEC 61000-4-6. The calibration accessories are provided together with the electromagnetic clamp.

Features:
High capacity: injection power up to 100 W (5 min); injection frequency 0.1 MHz – 1,000 Mhz;
Coupling / decoupling direction coefficient >10 dB (>0.1 MHz);

Testable cable size: diameter < 18 mm;

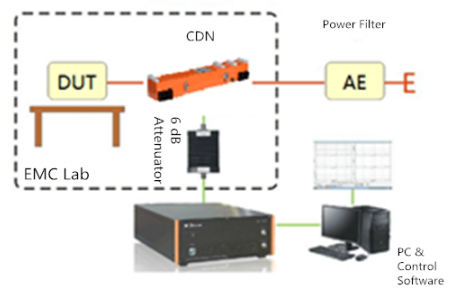

Equipment Connection Diagram:

IEC 61000-4-6

Technical Parameters
Frequency Range	0.1 MHz – 1,000 MHz
Nominal Impedance	50Ω
Connector Type	N (f)
Max Input Electric Level	0.15 Hz – 100 MHz, 100 W, 15 min; 100 MHz – 230 MHz, 100 W, 5 min; 230 MHz – 1,000 MHz, 50 W, 3 min
Max Cable Size	18 min
Dimension	664 x 130 x 128 mm
Weight	7 kg

Standard Accessories
Adaptor Connector	1 pc
Co-Axial Terminal Load – BNC 50Ω	1 pc
Calibration Device – 150/50Ω	1 pc
Calibration Copper Rod	1 pc
User Manual	1 pc
