The voltage surge simulator series products meet the testing needs of the following products and industries:
1. Test the voltage resistance of components, sockets, plugs, cables, and many other devices;
2. Test the safety of audio, video, and similar electronic devices;
3. Test the instantaneous overvoltage capability of the protective relay;
4. Others.
Features
>5.7 inch color touch screen front panel;
>Test voltage reaches up to 30 kV and supports customization;
>Built-in warning and control system;
>EUT breakdown alarming function;
>Superior quality, ideal substitute for imported similar products.
|
Technical Parameters |
|
|
Test Voltage |
0.5 kV ~12 kV, ±10% 1 kV ~20 kV, ±10% 3 kV ~30 kV, ±10% Other voltage range is customized. |
|
Waveform |
Front time: 1.2 μs±30% (30% ~ 90%) *1.67 Time to half-value: 50 μs±20% (origin ~ 50%) |
|
Waveform Shaping Capacitor |

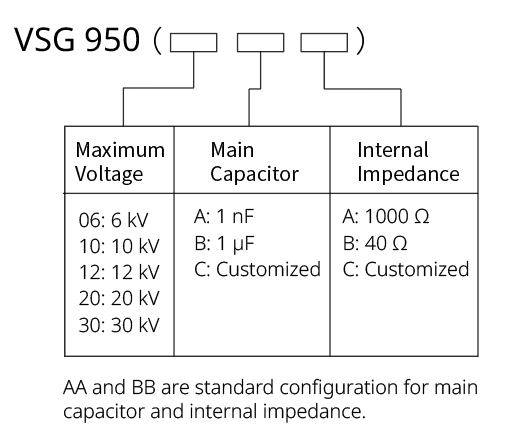

1 μF or 1 nF (see selection guide) |
|
Internal Resistance |
40 Ω ±10% or 1000 Ω±10% |
|
EUT Breakdown Alarming Current |
300 mA ~ 1,200 mA |
|
Output Polarity |
Positive, negative, first positive and then negative |
|
Pulse Period |
5 s ~ 99 s |
|
Triggering Mode |
External / automatic / manual |
|
No. Of Pulses |
1 ~ 10,000 |
|
Note: According to the requirements of IEC 60950, 1 nF/1000 Ω pulse withstand voltage has no wavefront time and half peak time requirements |
|
|
General Parameters |
|
|
Display |
5.7 inch TFT touch screen |
|
Power supply |
AC 110 V / 220 V, 50 / 60 Hz |
|
Fuse |
6 A |
|
Max Power |
200 W |
|
Operating Temp. |
15℃ ~ 35℃ |
|
Operating Humidity |
45% ~ 75% |
|
Operating Air Pressure |
86 kPa ~ 106 kPa |
|
Dimension |
19”, 4U/6U |
|
Weight |
Approx. 30 kg |
|
Standard Accessories |
|
1 host, Instruction Manual, Inspection Report, Test cable, Power Cord, Fuse |
|
Option |
|
Corelab control software: support Windows XP/7/8/10/11 OS; Easy to operate; Intuitive user interface; predefined standard library and test sequence function; support test report generation |
