HOME>Products>EMC General Test Equipments>Power Fail Simulator >Adjustable Impedance Tester for Calibration R/1-16Ω/1134

Adjustable Impedance Tester for Calibration R/1-16Ω/1134

Model：R/1-16Ω

Profile

R/1-16/1134 can provide adjustable impedance from 1 Ω to 16 Ω. The max power is 4000 W.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

R/1-16/1134 can provide adjustable impedance from 1 Ω to 16 Ω. The max power is 4000 W.

Features:
> High accuracy, non-inclusive resistors

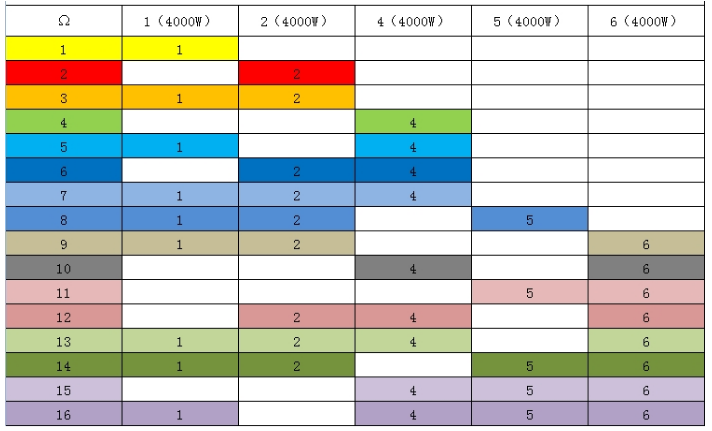

Manual Adjustment of Cascade Resistors:

IEC 61000-4-11
IEC 61000-4-34

Model	Impedance (Ω)	Power (W)
R/1-16/1134	1 – 16 adjustable	4000
