Technical Parameters

Rated Voltage

0 – 100 V, 0.1 V step

Voltage Dips / Surge Voltage

0 – 100 V, 0.1 V step

Voltage Dips / Surge Time

0.1 ms – 59.999 s

Voltage Rise / Fall Time

0.1 ms – 10 s, adjustable (the min. depends on the test voltage)

Upper/Lower Overshoot of Output Voltage

< 10% of voltage variation

(when load impedance of the generator is 100 Ω)

Time Interval

0.1      s – 60 s

Measuring Accuracy

Current: 1% ± 0.1 A

Max Output Current (Steady State)

See Optional Models

No. of Tests

1 – 9,999

No. of Ripple

< 1% of rated output voltage

Over-Current Protection Mode

Set arbitrarily from 1A to max. value of current

Load Adjustment Rate

<5% (rate of change of the voltage with the load, 0 to rated current)

Output Impedance for Interruption

>100 kΩ

General Parameters

Display

5.7” TFT touch screen

Operating Power Supply

8U equipment: 220 V,

50 / 60 Hz, ±10%

22U equipment: none

Auxiliary working power

AC 380 V

Fuse

6 A (8U equipment)

Max Power

300 W (main control part)

Dimension

19”, 4 U x 2 pcs

Weight

Approx 40 kg

Operating Temp.

15℃ - 35 ℃

Operating Humidity

45% - 75%

Operating Air Pressure

86 kPa – 106 kPa

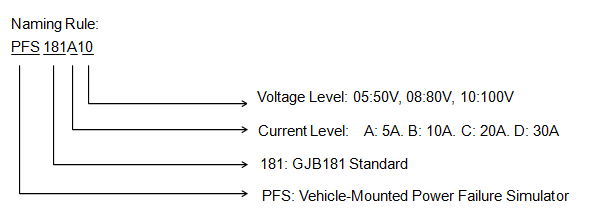

Optional Models

PFS 181A10 (8U)

Max output voltage: 100 V;  Max output current: 5 A;

PFS 181B10 (8U)

Max output voltage: 100 V;  Max output current: 10 A;

PFS 181C10 (8U)

Max output voltage: 100 V;  Max output current: 20 A;

PFS 181D10 (8U)

Max output voltage: 100 V;  Max output current: 30 A;

PFS 181E10 (22U)

Max output voltage: 100 V;  Max output current: 40 A;

PFS 181F10 (22U)

Max output voltage: 100 V;  Max output current: 50 A;
