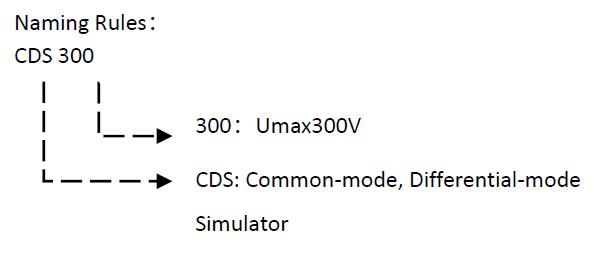

Technical Parameters in continuous mode |
||
|
Power Frequency |
DC, 162/3 Hz, 50 Hz, 60 Hz |
|
|
Open Circuit Voltage |
1 V ~ 30 V |
|
|
Signal Level |
（0.1-30）V (r.m.s.) or DC |
|
|
Test Level 1 |
1 V, continuous |
|
|
Test Level 2 |
3 V, continuous |
|
|
Test Level 3 |
10 V, continuous |
|
|
Test Level 4 |
30 V, continuous |
|
|
Output Impedance |
50 W±10% |
|
|
Total Harmonic Distortion |
<10%(sinusoidal) |
|
|
DC Ripple |
<5% |
|
|
Technical Parameters in short-term mode |
||
|
Power Frequency |
DC, 162/3 Hz, 50 Hz, 60 Hz |
|
|
Open Circuit Voltage |
10 V ~330 V |
|
|
Signal Level |
（1~330）V (r.m.s.) or DC |
|
|
Test Level 1 |
10 V, continuous for 1 s |
|
|
Test Level 2 |
30 V, continuous for 1 s |
|
|
Test Level 3 |
100 V, continuous for 1 s |
|
|
Test Level 4 |
300 V, continuous for 1 s |
|
|
Output Impedance |
50 W±10% |
|
|
Total Harmonic Distortion |
<10%(sinusoidal) |
|
|
Phase Sync |
0°±5% |
|
|
DC Ripple |
< 5% |
|
|
Fall/Rise Time |
1 μs-5 μs |
|
|
Power Frequency |
10 Hz-165 kHz |
|
|
Signal Level |
（0.1-30）V (r.m.s.) |
|
|
Test Level 1 |
1 V-0.1 V-1 V |
|
|
Test Level 2 |
3 V-0.3 V-3 V |
|
|
Test Level 3 |
10 V-1 V-10 V |
|
|
Test Level 4 |
30 V-3 V-30 V |
|
|
Output Impedance |
50 W±10% |
|
|
Total Harmonic Distortion |
<1%(sinusoidal) |
|
|
Technical Parameters in Differential Mode Voltage Disturbances |
||
|
Frequency Range |
2 kHz~150 kHz |
|
|
Waveform |
Sinusoidal, Total Harmonic Distortion (THD) <5% |
|
|
Open Circuit Voltage |
0.1 V ~20 V |
|
|
Load Impedance |
10 Ω, ±30% |
|
|
Technical Parameters in Differential Mode Current Disturbances |
||
|
Frequency Range |
2 kHz~150 kHz |
|
|
Max. Current |
5 A |
|
|
Load Impedance |
1 Ω, ±0.3 Ω |
|
|
BNC output |
10:1（0.1 V/A） |
|
|
General Parameters |
||
|
Power Supply |
AC 110/220 V, ±10%,45 Hz~65 Hz |
|
|
Ambient Temperature |
15 ℃ ~ 35 ℃ |
|
|
Dimension |
22U |
|
|
Weight |
Approx. 100 kg |
|
|
Accessories |
|
|
User Manual, Testing line, Fuse, ground line, RF cable, network cable, power line |
|
|
Options |
|
|
1. Coupling Networks CN416M2/M3-32 |
EUT voltage: single-phase 2-line or 3-line, 32 A, 250 V AC/DC Test voltage: DC-300V Frequency: DC（162/3 Hz, 50 Hz, 60 Hz）2 kHz~150 kHz |
|
2. Coupling Networks CN416M4N-32 |
EUT voltage: three-phase 4-line, 32 A，L-PE 250 V AC/DC Test voltage: DC-300 V Frequency: DC（162/3 Hz, 50 Hz, 60 Hz） 2 kHz~150 kHz |
|
3. Coupling Networks CN416M5-32 |
EUT voltage: three-phase 5-line, 32 A，L-PE 250 V AC/DC Test voltage: DC-300 V Frequency: DC（162/3 Hz, 50 Hz, 60 Hz）2 kHz~150 kHz |
|
4. Coupling/ decoupling Networks CDN416T2 |
Frequency range: 2 kHz ~150 kHz, lines: 2, Max. current: 0.5 A, Max. voltage: AC 150 V DC 200 V，joint: terminal block |
|
5. Coupling/ decoupling Networks CDN416T4 |
Frequency range: 2 kHz ~ 150 kHz, Number of lines: 4, Max. current: 0.5 A，Max. voltage: AC 150 V DC 200 V，joint: terminal block |
|
6. Coupling/ decoupling Networks CDN416T8 |
Frequency range: 2 kHz ~ 150 kHz, Number of lines: 8, Max. current: 0.5 A，Max. voltage: AC 150 V DC 200 V，joint: terminal block |
|
7. Isolation transformer |
Used in conducting test as per IEC/EN 61000-4-16 for coupling and decoupling function. Users need to consult detailed model number according to the power consumption of 1-phase or 3-phase power. |
|
8. CoreLab PC Control Software |
Support Windows 7 and above; easy to use; clean and beautiful UI; with powerful operating function and standard test library, customized automatic testing configuration can be realized; generating test reports flexibly. |
|
9. Coupling/decoupling Networks CDN419M3-32 |
EUT voltage: single-phase 3-line, 32 A, 250 V AC/DC Frequency: 2 kHz~150 kHz |
|
10. Coupling/decoupling Networks CDN419M4N-32 |
EUT voltage: three-phase 4-line, 32 A, line-to-ground, 250 V AC/DC Frequency: 2 kHz~150 kHz |
|
11. Differential-mode Current Test Module WCT 20 |
Frequency:2 kHz ~ 150 kHz Max. Current: 5 A Max. Voltage: ＜22 V Impedance: 1 Ω±0.3 Ω |
|
12. Differential-mode Voltage Test Module R419-10 |
10 Ω |
|
13. Balanced / unbalanced impedance converter Balun50/10
|
Characteristic impedance: 50 Ω / 10 Ω; Frequency: 2 kHz~150 kHz; Max input voltage (Vpp): 400 V; |
|
14. Coupling Networks CN14598-19 |
EUT voltage: Max. 250 V AC EUT current: Max. 32 A |
|
15. Differential-mode Voltage Test Module RJJF-100 |
100 Ω |
