HOME>Products>Military Test Equipment>MIL-STD-461 Series/ GJB 151、181 Series >Wideband Current Monitoring Clamp TWCM-200

Wideband Current Monitoring Clamp TWCM-200

Model：TWCM-200

Profile

Wideband current monitoring clamp TWCM-200 is used to measure 1 kHz ? 200 MHz alternating current and time-domain impulse current.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

Wideband current monitoring clamp TWCM-200 is used to measure 1 kHz – 200 MHz alternating current and time-domain impulse current. It adopts snap-buckle structure to transmit the time-harmonic signal current or pulse signal current to the recording device in the form of voltage through electromagnetic coupling. It meets the requirements of military standards CS115, CS116 of GJB 151a-97, GJB 151b-2013, and the U.S. military standards CS114, CS115, CS116 in MIL-STD-461E/F/G, and is widely used in electromagnetic compatibility conduction sensitivity (immunity) test.

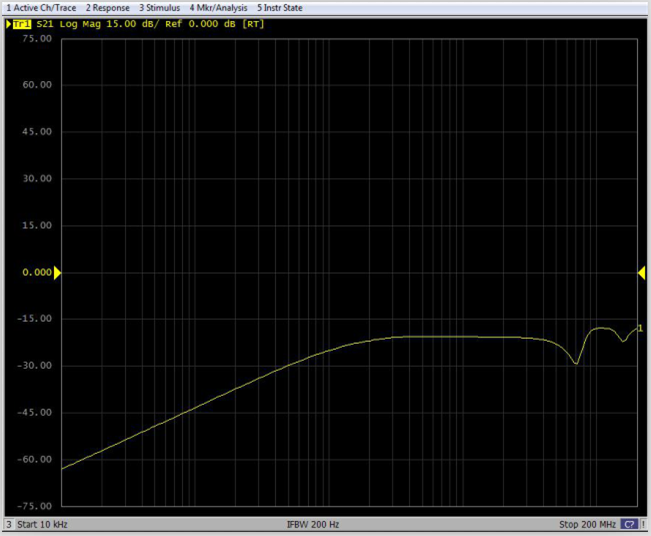

Curve S21 of TWCM-200
*The Calibration cure is measured with 50 Ω load
**transfer impedance Zt(dBΩ)=S21+34

GB/T 17626.4
GJB 151A-97
GJB 151B-2013
MIL-STD-461E/F/G(CS114,CS115,CS116)

Technical Data
Frequency	1 kHz - 200 MHz
Internal Diameter	40 mm
External Conjugate	127 mm
Height	40 mm
Transfer Impedance	5.6 Ω
Transfer Impedance	15 dBΩ
Connector Type	N type
R-F Current	2 A
Pluse Current	100 A
Weight	1.3 kg
