HOME>Products>Military Test Equipment>MIL-STD-461 Series/ GJB 151、181 Series >Current Injection Clamp BCIP-200

Current Injection Clamp BCIP-200

Model：BCIP-200

Profile

The BCIP-200 current injection clamp is a wideband current coupling device, which can transfer the time-harmonic signal current or pulse signal current to the test device (EUT): PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The BCIP-200 current injection clamp is a wideband current coupling device, which can transfer the time-harmonic signal current or pulse signal current to the test device (EUT) through magnetic coupling. It has the characteristics of waveform distortion free and physical isolation from EUT. Meet the needs of the US military standard MIL-STD-461E/F/G CS114, CS115, CS116 test items, widely used in electromagnetic compatibility conduction sensitivity (immunity) test.

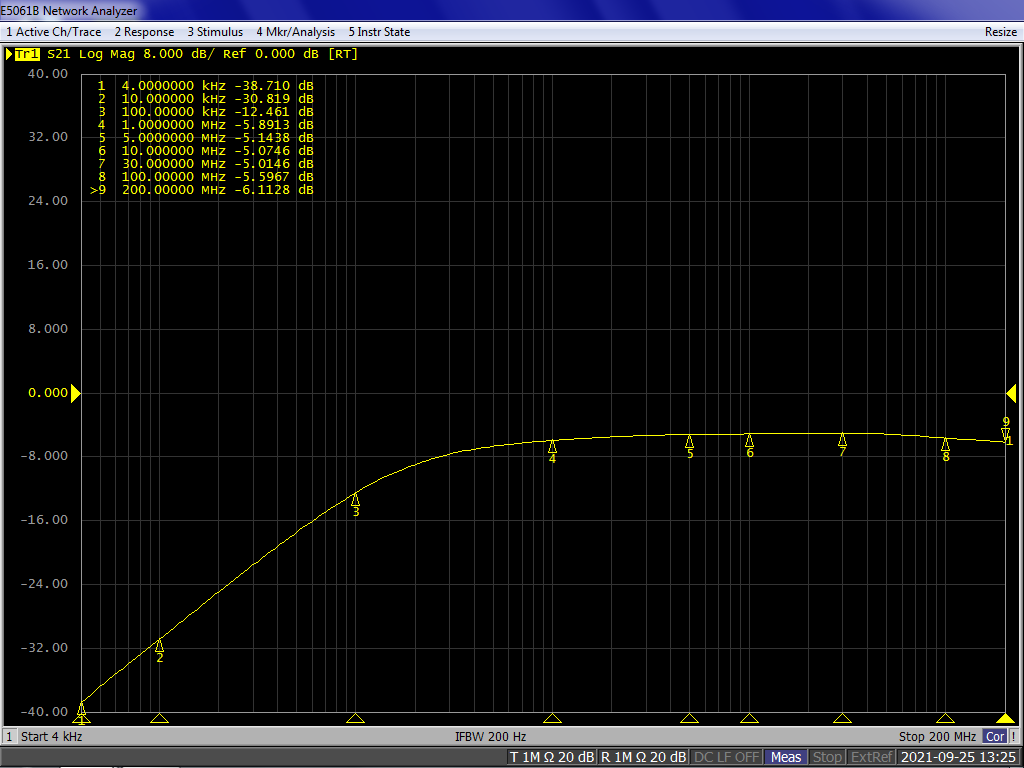

BCIP-200 current injection clamp insertion loss curve

MIL-STD-461E/F/G

Technical Parameters
Frequency	10 kHz-200 MHz
Maximum Input Power	100 W for 30 minutes
	150 W for 15 minutes
	200 W for 5 minutes
Connector Type	N type
Internal Diameter	40 mm
External Diameter	127 mm
Height	90 mm
Weight	3.12 Kg

Product Accessories
Current injection clamp calibrates the fixture	BCICF-200
