    HOME>Products>Automotive EMC Test Equipments>Automotive Load Dump Simulator >Load Dump Pulse Simulator LDS 200Nxx Series
      Load Dump Pulse Simulator LDS 200Nxx Series
      Model：LDS 200Nxx Series

      Profile

      Load dump pulse simulator LDS 200Nxx series simulate load dump transient occurring in the event of a discharged battery being disconnected (e.g. the abrupt disconnection owing to corrosion)
      PDFConsultation

      Online customized according to your needs>>

        Share
      • Feature
      • Standard
      • Parameter
      • Fitting
      • Services
      • Video
      LDS 200Nxx series simulate load dump transient occurring in the event of a discharged battery being disconnected (e.g. the abrupt disconnection owing to corrosion) while the alternator is generating charging current with other loads remaining on the alternator circuit at this moment, which can be destructive. The simulators can generate both transients without and with centralized load dump suppression (via built-in amplitude clamping circuit), with the continuous time of hundreds of milliseconds or longer, in compliance with ISO 7637-2, ISO 16750-2 and many other automotive manufacturers like Ford, Kreisler etc.

      Features：
      5.7” color touch screen;
      Capable of generating transients with centralized load dump suppression;
      Built-in adjustable impedance source;
      Pulse continuous time up to 1,200 ms (internal resistance > 2Ω);
      In compliance with test requirements of many manufacturers;
      Built-in 60 V / 30 A or 50 A, 100 A, 200 A coupling device;
      Detection of DUT current and over-current protection;
      Ethernet RJ 45 interface for PC control, printing test reports;

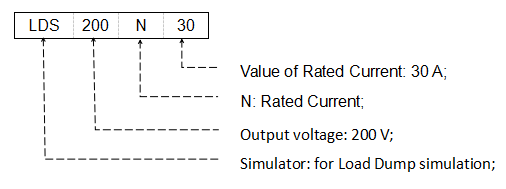

      Naming Rules：

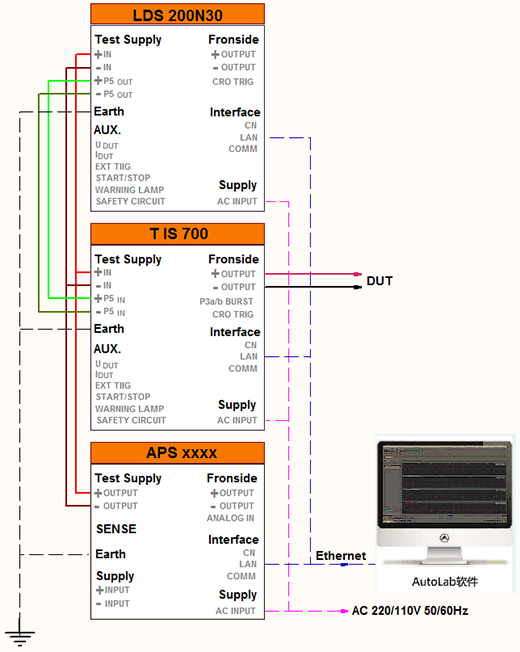

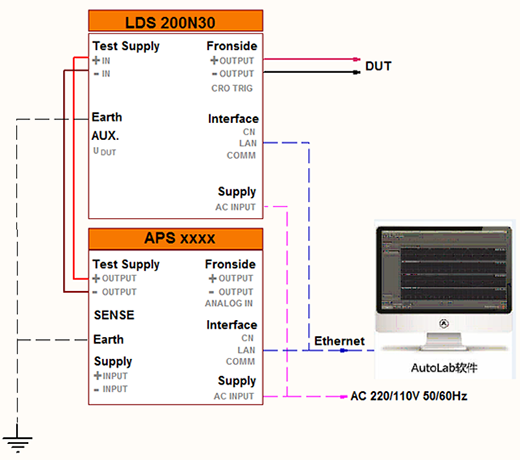

      Equipment Connection Diagram

      • ISO 7637
      • ISO 16750
      • Ford EMC-CS-2009.1
      • Ford FMC1278

      Technical Parameters

      As per ISO16750-2 TEST A/B, ISO 7637-2 P5a/P5b

      Pulse Amplitude

      30-210 V

      Clamping Voltage

      15-100 V

      Impedance (Ri)

      0.5-40 Ω, 0.1 Ω, adjustable;

      Rise Time

      5-10ms

      (under the free mode, 1-10 ms adjustable，resolution: 1 ms)

      Duration Time

      40-400ms，1ms, adjustable

      Repetition

      15-600s (1s adjustable) depending on the pulse energy

      Output Mode

      Single, continuous or as programmed, 1-9999

      Output Connection

      Can be connected to TIS 700 transient simulator

      Coupling

      To the positive pole of battery

      Decouping

      Built-in diode

      DUT Supply

      Max 60 V;

      DUT Supply Current

      Max 30 A, 50 A, 100 A, 200 A;

      CRO

      5V TTL signal

      Interface

      LAN Ethernet RJ45

      General Parameters

      Power Supply

      AC 110/220 V, ±10%,45-65 Hz

      Operating Temp.

      15 - 35℃

      Dimension

      450 × 600 × 266 mm (6U cabinet)

      Weight

      About 33 Kg


      Standard Accessories

      Testing Wire

      1 pc

      Fuse

      1 pc

      User Manual

      1 pc

      Factory Inspection Report

      1 pc

      Optional Accessories

      1. Software: AutoLab.

      In support of windows XP / 7 and above;

      Easy to operate;

      Equipped with rich standards library, easy to set up and customize test schedules;

      Automatic / manual detection of equipment connected and automatic configuration;

      Easy to generate test reports with formats available.
