Coupling/Decoupling Networks for Shielded Cables CND 405S9

Model：CDN 405S9

Profile

Coupling/decoupling networks for shielded cables CDN 405S9 is designed in accordance with Standard IEC610000-4-5 and is applicable to shielded cables of 9-core: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The CDN 405S9 is designed in accordance with IEC610000-4-5 and applicable to shielded cables of 9-core, to which surge tests are applied. The test level up to 6 kV and current up to 1 A.
The CDN 405S9 can meet the test requirement of one-end and two-end grounded shielding.

Features：
> Maximum current up to 1A;
> Maximum testing waveform level is 6 kV;
> Applicable to coupling/decoupling for 9-core shielded cables;
> Meet the test requirement of one-end and two-end grounded shielding;
> All plugs are equipped with banana plugs to ensure the safety of users;

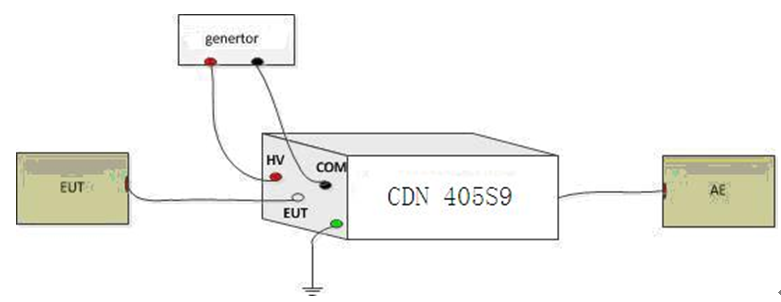

Test Connection Schematic Drawing

Standard Schematic Diagram

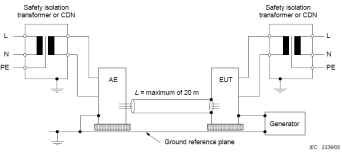

Figure 1（Shields grounded at both ends）：

Standard Schematic Diagram

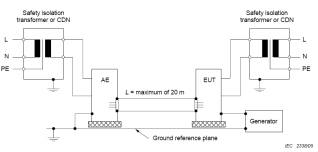

Figure 2（Shields grounded at one end）：

IEC 61000-4-5
GB/T 17626.5
EN 61000-4-5

Technical Parameters
Model No.	CDN 405S9
Standard	IEC/EN 61000-4-5
Test Waveform	1.2/50 μs (8/20 μs), 6 kV
Coupling Mode	Direct connection
Transmission Rate	Up to 10 MBit/s
Max. Current	1 A
EUT Connecting Port	RS232
General Parameters
Weight	Approx. 10 kg
Dimension	360 mm (L)x220 mm(W) x135 mm(H)
Enclosure Material	Aluminum alloy
Ambient Temperature	15℃-35℃
Relative Humidity	45%-75%
Package Case	Carton

Accessories
Test Cables	Red, black
Grounded Cables	Yellowish green
