HOME>Products>EMC General Test Equipments> CDN for Communication Cable in Transient Immunity Test >Coupling/Decoupling Networks for Shielded Cables CDN 405S8

Coupling/Decoupling Networks for Shielded Cables CDN 405S8

Model：CDN 405S8

Profile

Coupling/decoupling networks for shielded cables CDN 405S8 is designed in accordance with Standard IEC610000-4-5 and is applicable to shielded cables of 8-core: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The CDN 405S8 is designed in accordance with IEC610000-4-5 and applicable to shielded cables of 8-core, to which surge tests are applied. The test level up to 6 kV and current up to 1 A.
CDN 405S8 can meet the test requirement of one-end and two-end grounded shielding.

Features：
> Maximum current up to 1A;
> Maximum testing waveform level is 6 kV;
> Applicable to coupling/decoupling of 8-core shielded cables;
> Meet the test requirement of one-end and two-end grounded shielding;
> All plugs are equipped with banana plugs to ensure the safety of users;

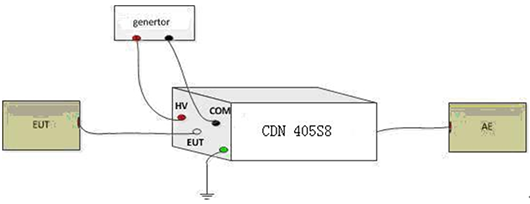

Test Connection Schematic Drawing

Standard Schematic Diagram Standard Schematic Diagram

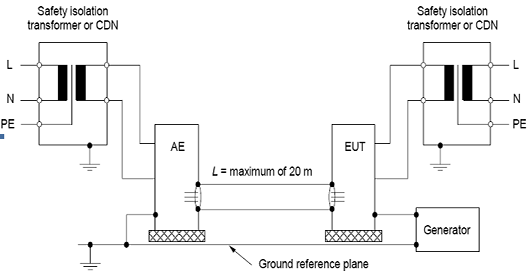

Figure 1（Shields grounded at both ends）：

Standard Schematic Diagram Standard Schematic Diagram

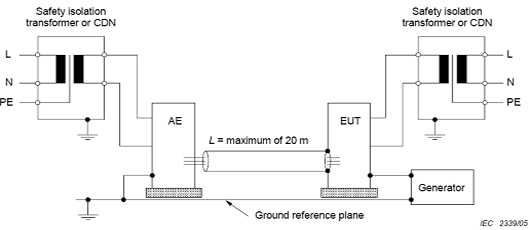

Figure 2（Shields grounded at one end）：

IEC 61000-4-5
GB/T 17626.5
EN 61000-4-5

Technical Parameters
Test Waveform		1.2/50 μs (8/20 μs), 6 kV
Coupling Mode		Direct connection
Transmission Rate		Up to 1000 MBit/s
Max. Current		1 A
EUT Connecting Port		RJ45
General Parameters
Weight	Approx. 10 kg
Dimension	360 mm (L)x220 mm(W) x135 mm(H)
Enclosure Material	Aluminum alloy
Ambient Temperature	15 ℃ - 35 ℃
Relative Humidity	45%-75%
Package Case	Carton

Accessories
Test Cables	Red, black, yellowish green
Cables with Shielding Layer	1 m
