    HOME>Products>EMC General Test Equipments> CDN for Communication Cable in Transient Immunity Test >Coupling/Decoupling Networks for Shielded Cables CND 405S1
      Coupling/Decoupling Networks for Shielded Cables CND 405S1
      Model：CDN 405S1

      Profile

      Coupling/decoupling networks for shielded cables CDN 405S1 is designed in accordance with Standard IEC610000-4-5 and is applicable to shielded cables of one-core, to which surge tests are applied.
      PDFConsultation

      Online customized according to your needs>>

        Share
      • Feature
      • Standard
      • Parameter
      • Fitting
      • Services
      • Video
      The CDN 405S1 is designed in accordance with IEC610000-4-5 and applicable to shielded cables of one-core, to which surge tests are applied. The test level up to 6 kV and current up to 5 A.
      The CDN 405S1 can meet the test requirement of one-end and two-end ground shielding.

      Features：
      > Applicable to coupling/decoupling for one-core shielded cables;
      > Meet the test requirement of one-end and two-end grounded shielding;
      > All plugs are equipped with banana plugs to ensure the safety of users;

      Test Connection Schematic Drawing

      Standard Schematic Diagram Standard Schematic Diagram

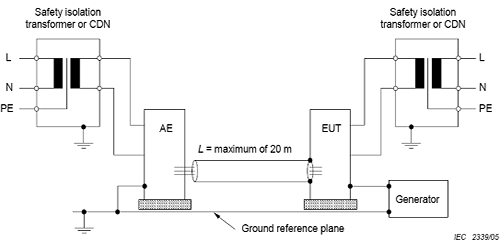

      Figure 1（Shields grounded at both ends）：

      Standard Schematic Diagram Standard Schematic Diagram

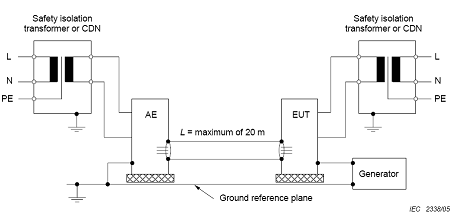

      Figure 2（Shields grounded at one end）：


      • IEC 61000-4-5
      • GB/T 17626.5
      • EN 61000-4-5

      Technical Parameters


      Test Waveform

      1.2/50 μs (8/20 μs) 6 kV


      Coupling Mode

      Direct connection


      Transmission Rate

      Up to 10 MBit/s


      Max. Current

      5 A


      EUT Connecting Port

      BNC

      General Parameters

      Weight

      Approx. 10 kg

      Dimension

      360 mm (L)x220 mm(W) x135 mm(H)

      Enclosure Material

      Aluminum alloy

      Ambient Temperature

      15 ℃ - 35 ℃

      Relative Humidity

      45%-75%

      Package Case

      Carton


      Accessories

      Test Cables

      Red, black (double-end sheath)

      Grounded Cables

      Yellowish green (with sheathing clamp at one end and sheath at the other end）

      Short-circuit Plug

      24.0023-21
