      Coupling Networks for Testing of Immunity to Conducted, Common-mode Disturbances CN 416M4N-32
      Model：CN 416M4N-32

      Profile

      CN 416M4-32 is specifically designed to meet the requirements as per Standard IEC 61000 - 4 -16:2015, which can be applied to 4-line cables, with its voltage of immunity to coupling conducted common mode disturbance up to 300V.
      PDFConsultation

      Online customized according to your needs>>

        Share
      • Feature
      • Standard
      • Parameter
      • Fitting
      • Services
      • Video
      The CN 416M2/M3-32 coupling network is suitable for (common mode conducted immunity) 4-wire cables, and its coupled common mode conducted immunity voltage can reach 300V. Design strictly in accordance with the requirements of IEC 61000-4-16:2015 standard.

      Features
      > Suitable for 4-wire common mode simultaneous injection;
      > Quick short-circuit switch for DC coupling;
      > Banana head terminal signal injection.

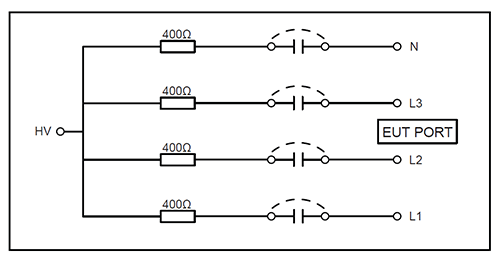

      1、Standard Schematic Diagram:

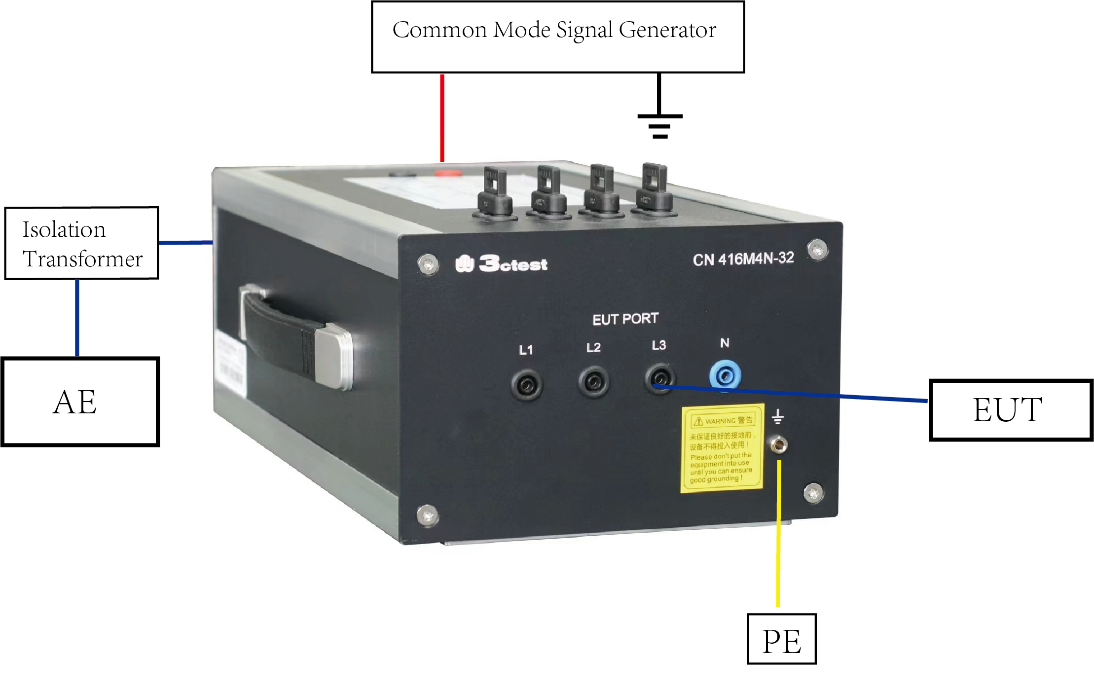

      2. Test Connection Schematic Drawing:

      • IEC 61000- 4-16

      Technical Parameters

      Standard

      IEC 61000-4-16:2015

      Coupling Frequency

      0 Hz-150 kHz, CW wave

      Line Impedance

      400 Ω * 4

      Coupling Voltage

      300V

      Coupling Mode

      4-wire common mode (simultaneously to ground)

      Coupling Device

      1 μF capacitor

      Working Voltage

      Maximum 400V DC

      Working Current

      Maximum 32A

      AE/EUT Port Type

      4 mm banana head

      Signal Injection Port Type

      4 mm banana head

      General Parameters

      Weight

      Approximately 3.6 kg

      Size

      360 mm x 220 mm x 135 mm (length x width x height)

      Shell Material

      Aluminum material

      Ambient Temperature

      15 ° C -35 ° C

      Relative Humidity

      45% -75%


      Standard Accessories

      Test line, Plug
