    HOME>Products>EMC General Test Equipments>Low Frequency Conducted Immunity Simulator >Coupling Networks for Testing of Immunity to Conducted, Common-mode Disturbances CN 416M2/M3-32
      Coupling Networks for Testing of Immunity to Conducted, Common-mode Disturbances CN 416M2/M3-32
      Model：CN 416M2/M3-32

      Profile

      CN 416M2/M3-32 is specifically designed to meet the requirements as per Standard IEC 61000 - 4 -16:2015, which can be applied to 2-line or 3-line cables, with its voltage of immunity to coupling conducted common mode disturbance up to 300V.
      PDFConsultation

      Online customized according to your needs>>

        Share
      • Feature
      • Standard
      • Parameter
      • Fitting
      • Services
      • Video
      CN 416M2/M3-32 is specifically designed to meet the requirements as per Standard IEC 61000 - 4 -16:2015, which can be applied to 2-line or 3-line cables, with its voltage of immunity to coupling conducted common mode disturbance up to 300V.

      Characteristics:
      > As per Standard IEC 61000-4-16
      > Applied to 2-line or 3-line common mode injected simultaneously
      > HV BNC terminal/banana plug signal injection
      > Fast short-circuit switch, used for DC coupling

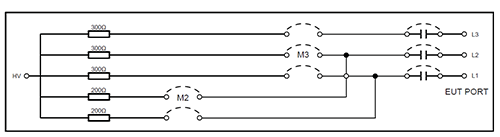

      1、Standard Schematic Diagram:

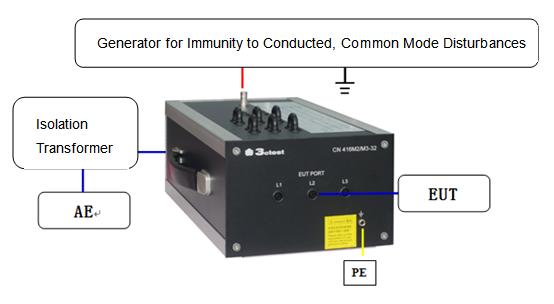

      2. Test Connection Schematic Drawing:


      • IEC 61000- 4-16

      Technical Parameters

      Standard

      IEC 61000-4-16:2015

      Coupling Frequency

      0 Hz-150 KHz ，CW wave

      Circuit Impedance

      M2/200 Ω*2，M3/300 Ω*2

      Coupling Voltage

      300 V

      Coupling Mode

      2-line/3-line common mode （to earth simultaneously）

      Coupling Component

      1uF capacitor

      Operating Voltage

      Max. 400 V DC

      Operating Current

      Max. 32 A

      General Parameters

      Weight

      3.6 Kg

      Dimension

      250 mm(L)x200 mm(W)x133 mm(H)

      Enclosure Material

      Aluminum alloy

      Ambient Temperature

      15 ℃-35 ℃

      Relative Humidity

      45%-75%

      Package Case

      Carton
