      Automobile Micro - Pulse Generator TIS 700S
      Model：TIS 700S

      Profile

      Automobile micro - pulse generator TIS 700S is capable of independently carrying out compactable automobile micro - pulse tests.
      PDFConsultation

      Online customized according to your needs>>

        Share
      • Feature
      • Standard
      • Parameter
      • Fitting
      • Services
      • Video
      TIS 700S is capable of independently carrying out compactable automobile micro - pulse tests. 9 interchangeable waveform modules are available: Pulse A2, B2, D2 in JASO - D001 tests, Pulse B2 in NISSAN 28400 NDS03, Pulse C8, C50, C300 in NISSAN 28400 NDS07, and mutual inductive pulse, self - inductive pulse in SAEJ1455 (other waveforms can be customized).
      With touch screen menu and function keys, tests can be quickly and accurately set up and carried out.

      Features:
      5.7” color touch screen front control panel;
      9 modules available (or otherwise customized) with plug connectors；
      CN25 and CAN internal bus can transmit the DUT voltage signal to the power terminal, and can be communicated with equipment of other manufacturers;
      Ethernet RJ 45 for PC remote control, printing test reports;

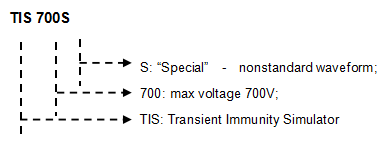

      Naming Rules:

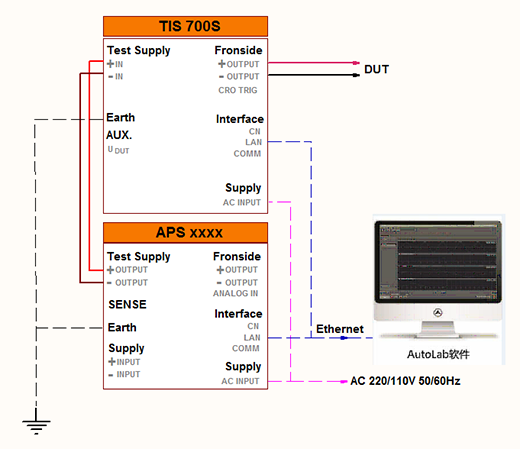

      Equipment Connection Diagram:

      • JASO - D001
      • NISSAN 28400 NDS03
      • NISSAN 28400 NDS07
      • SAEJ1455

      Technical Parameters

      As per NISSAN 28400 NDS03 B2

      Pulse Amplitude Vp

      200 - 400 V

      Rise Time Tr（Vp）

      ≤1 μs

      Step Interval

      3 - 99 s

      Polarity

      +/ -

      No. of Burst

      1 - 9999

      Weight

      1 kg

      Dimension

      95 x 170 x 180 mm

      NISSAN 28400 NDS07 C8

      Pulse Amplitude Vp

      200 - 400 V

      Rise Time Tr（Vp）

      ≤1 μs

      Step Interval

      3 - 99 s

      Polarity

      +/ -

      No. of Burst

      1 - 9999

      Weight

      1 kg

      Dimension

      95 x 170 x 180 mm

      NISSAN 28400 NDS07 C50

      Pulse Amplitude Vp

      200 - 400 V

      Rise Time Tr（Vp）

      ≤1 μs

      Step Interval

      3 - 99 s

      Polarity

      +/ -

      No. of Burst

      1 - 9999

      Weight

      1 kg

      Dimension

      95 x 170 x 180 mm

      NISSAN 28400 NDS07 C300

      Pulse Amplitude Vp

      200 - 400 V

      Rise Time Tr（Vp）

      ≤1 μs

      Step Interval

      3 - 99 s

      Polarity

      +/ -

      No. of Burst

      1 - 9999

      Weight

      1 kg

      Dimension

      95 x 170 x 180 mm

      SAEJ1455 Self - inductive Pulse

      Pulse Amplitude Vp

      200 - 600 V

      Rise Time Tr（Vp）

      ≤1 μs

      Time Constant

      1000 μs

      Step Interval

      1 - 99 s

      Polarity

      +/ -

      No. of Burst

      1 - 9999

      Weight

      1 kg

      Dimension

      95 x 170 x 180 mm

      SAEJ1455 Mutual Induct

      Pulse Amplitude Vp

      200 - 600 V

      Rise Time Tr（Vp）

      ≤1 μs

      Time Constant

      15 μs

      Step Interval

      1 - 99 s

      Polarity

      +/ -

      No. of Burst

      1 - 9999

      Weight

      1 kg

      Dimension

      95 x 170 x 180 mm

      JASO - D001 A2

      Pulse Amplitude Vp

      100 - 300 V

      Rise Time Tr（Vp）

      ≤1 μs

      Step Interval

      3 - 99 s

      Polarity

      +

      No. of Burst

      1 - 9999

      Weight

      1 kg

      Dimension

      95 x 170 x 180 mm

      JASO - D001 B2

      Pulse Amplitude Vp

      200 - 400 V

      Rise Time Tr（Vp）

      ≤1 μs

      Step Interval

      3 - 99 s

      Polarity

      +/ -

      No. of Burst

      1 - 9999

      Weight

      1 kg

      Dimension

      95 x 170 x 180 mm

      JASO - D001 D2

      Pulse Amplitude Vp

      100 - 300 V

      Rise Time Tr（Vp）

      ≤1 μs

      Step Interval

      3 - 99 s

      Polarity

      +

      No. of Burst

      1 - 9999

      Weight

      1 kg

      Dimension

      95 x 170 x 180 mm

      General Parameters

      Power Supply

      AC 110/220 V, 10%, 45 - 65 Hz

      Environmental Temperature

      15 - 35℃

      Relative Temperature

      35% - 85%RH (condensation free)

      Dimension

      450 x600 x177 mm (4U cabinet x 2)

      Weight

      About 20 kg


      Standard Accessories

      Testing wire

      1 pc

      Fμse

      1 pc

      Factory Inspection Report

      1 pc

      Μser Manual

      1 pc

       Optional Accessories

      1. Software: AutoLab.

      In support of windows XP / 7 and above;

      Easy to operate;

      Equipped with rich standards library, easy to set up and cμstomize test schedules;

      Automatic / manual detection of equipment connected and automatic configuration;

      Easy to generate test reports with formats available.
