Technical Parameters – EFT/Burst |
|
|
3-Phase Automatic CDN
|
(As per IEC/EN 61000-4-4) Max. test voltage: 4.2 kV (Note: the actual output voltage is subject to the set value of the generator) |
|
Phase Sync |
Any combination of L1, L2, L3, N, PE with any phases and angles |
|
Coupling Paths |
Any combination of L1, L2, L3, N, PE |
|
Switching of Coupling Paths |
Automatic as per scheduled |
|
Coupling Capacitance |
33 nF |
|
Coupling Attenuation |
<2 dB |
|
Residue Impulse Voltage at EUT Input End |
≤ 10% of test voltage; |
|
Technical Parameters - Surge |
|
|
3-Phase Automatic CDN |
As per IEC/EN 61000-4-5, Max test voltage: 8 kV (1.2/50 μs), max. test current: 4 kA (8/20 μs) (Note: the actual output voltage is subject to the set value of the generator) |
|
Phase Sync |
Any combination of L1, L2, L3, N, PE with any phases and angles |
|
Coupling Paths |
Any combination of L1, L2, L3, N, PE |
|
Switching of Coupling Paths |
Automatic as per scheduled |
|
Coupling Capacitance |
9 nF, 18 nF |
|
Coupling Resistance |
10 Ω, 0Ω (standard or user-defined) |
|
Coupling Attenuation |
<2 dB |
|
Residual Impulse Voltage at EUT Input Terminal |
≤ 15% of test voltage or 2 times of rated peak voltage of CDN; |
|
General Parameters |
|
|
EUT Load Capacity |

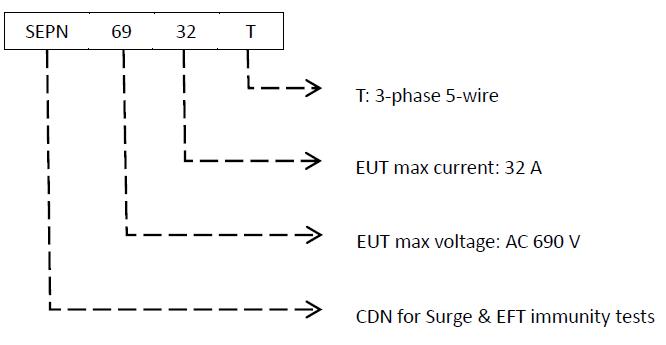

Max AC 690V, 32 A, 50/60 Hz, 3-phase 5-wire; |
|
Switching Method of EUT Power Supply |
Automatic |
|
Short-term Inrush Current |
Peak value 400 A |
|
Current Detection |
Front panel co-axial terminal output: 100 A: 1 V |
|
Over-current Protection |
Alarm limit: rated current x 1.5; When ms-level continuous over-current is reached, warn information will displayed on LCD screen and EUT circuit will be cut off. |
|
Operating Power Supply |
AC 110V / 220 V ±10%， 50/60 Hz ± 5% |
|
Fuse |
6 A |
|
Max Power |
200 W |
|
Auxiliary Port |
D- sub 25p |
|
Operating Status |
Front panel LED indicators |
|
Grounding Method |
Flat grounding strap |
|
Dimension |
19”/22 U |
|
Weight |
About 200 kg |
|
Ambient Temperature |
15℃~35℃ |
|
Relative Humidity |
45% ~ 75% |
|
Atmospheric Pressure |
86 kPa ~ 106 kPa |
|
Accessories |
|
|
User manual, Test line, 3-core Power line, Grounding line, Fuse (spare parts), Coaxial cable |
|
|
Optional Generators & Calibration Tools |
|
|
EFT 500x |
EFT/Burst generator, as per IEC 61000-4-4, max. burst output voltage 4.8 kV |
|
EFT 600x |
EFT/Burst generator, as per IEC 61000-4-4, max. burst output voltage 6.0 kV |
|
EFT 500x |
EFT/Burst generator, as per IEC 61000-4-4, max. burst output voltage 7.0 kV |
|
CWS 600x |
Surge generator; as per IEC 61000-4-5; max. pulse output voltage 6.0 kV (1.2/50 μs), output current 3.0 kA (8/20 μs) |
|
CWS 800x |
Surge generator; as per IEC 61000-4-5; max. pulse output voltage 8.0 kV (1.2/50 μs), output current 4.0 kA (8/20 μs) |
|
CWS 1000x |
Surge generator; as per IEC 61000-4-5; max. pulse output voltage 10.0 kV (1.2/50 μs), output current 5.0 kA (8/20 μs) |
|
CCS 600x |
Surge and EFT/Burst generator; As per IEC 61000-4-4, max burst output voltage is 4.8 kV As per IEC 61000-4-5, max. pulse output voltage 6.0 kV (1.2/50 μs), output current 3.0 kA (8/20 μs) |
|
CCS 1000x |
Surge and EFT/Burst generator; As per IEC 61000-4-4, max burst output voltage is 4.8 kV As per IEC 61000-4-5, max. pulse output voltage 10.0 kV (1.2/50 μs), output current 5.0 kA (8/20 μs) |
|
VCF-80 |
HV differential probe, for calibration of Surge generator (open-circuit voltage waveform); test voltage max 8 kV, attenuation: 1000:1; |
|
TR 5025 |
HV current transducer, for calibration of Surge generator (short-circuit current waveform); Test current max 20 kA, attenuation 100:1; |
|
Calibration Kit for EFT/Burst Generators |
TFB 50: input impedance 50 Ω, output impedance 50 Ω, attenuation 55 dB; TFB 1000: input impedance 1000 Ω, output impedance 50 Ω, attenuation 60 dB; Supplied with network adaptors and tool box. |
