The high-voltage high-power CDN for EFT/Burst immunity tests is designed according to test requirements of IEC/EN 61000-4-4, features stable performance and convenient operation. The device is used together with CCS series and EFT series of 3ctest. Maximum EUT load capacity is AC 450 V 50 A/ DC 110 V 50 A and can also be customized according to actual EUT load.
Features：
> High capacity of EUT load;
> Automatic switching as scheduled;
> Over-current protection;
> Test sequencing for test voltage, polarity, phase sync angle etc.;
> Superposition of phase angle on random lines;

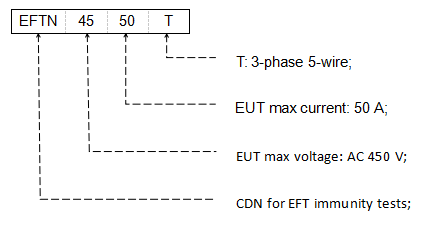

Naming Rules:
|
Technical Parameters |
|
|
Three-phase Automatic CDN |
For EFT/Burst immunity test, voltage up to 4.2 kV. (Note: the actual output value is subject to the set value of the generator) |
|
EUT Load Capacity |
AC 450 V, 50 A, 50 / 60 Hz, 3-phase 5-wire; DC 110 V, 50 A; |
|
Short-term Inrush Current |
Peak value 400 A; |
|
Switching of Coupling Paths |
Automatic, can be scheduled |
|
Phase Sync. |
Any combination of L1, L2, L3, N, PE with any phases and angles; |
|
Coupling Paths |
Any combination of L1, L2, L3, N, PE, DC+, DC-; |
|
Coupling Capacitance |
33 nF; |
|
Coupling Attenuation |
< 2 dB; |
|
Residue Impulse Voltage at EUT Injection End |
Less than 10% of test voltage; |
|
General Parameters |
|
|
Dimension |
19’ / 22 U; |
|
Weight |
Approx. 150 kg; |
|
Operating Temp |
15 ℃ ~ 35℃ |
|
Operating Humidity |
45% ~ 75% RH |
|
Operating Air Pressure |
86 kPa ~ 106 kPa |
|
Accessories |
|
User manual, Test line, Power line, Grounding line |
|
Options |
|
1. EFT/Burst Calibration Kit TFB 500/TFB 1000 TFB 500: input impedance 50 Ω, output impedance 50 Ω, attenuation 55 dB TFB 1000: input impedance 1000 Ω, output impedance 50 Ω, attenuation 60 dB
|
