Calibration Kit for Capacitive Coupling Clam CA-CCC

Model：CA-CCC

Profile

Calibration kit for capacitive coupling clam CA-CCC is the calibration device of Capacitive Coupling Clamp (CCC), designed according to the latest international standards.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

CA-CCC is the calibration device of Capacitive Coupling Clamp (CCC), designed according to the latest international standards.

Calibration Setup:

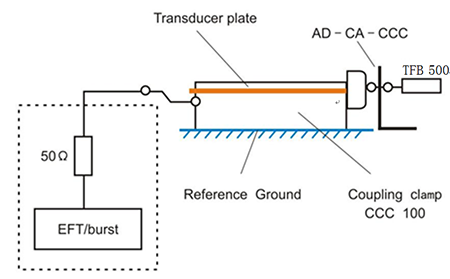

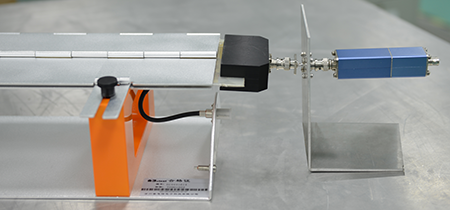

Place the transducer plate inside the CCC, and align it with the bottom of the CCC. Connect the transducer plate with the low-impedance adaptor AD-CA-CCC then the 50 Ω attenuator. The adaptor ensures that the attenuator be properly connected to the reference ground, and holds the attenuator over 100 mm above the height of the CCC.
The distance between the transducer plate and the attenuator shall be less 0.1 m.

Calibration Process:
Calibration of the Capacitive Coupling Clamp is performed through setting of the open-circuit voltage of the EFT/B generator. The output voltage of the 50 Ω attenuator should be 1,000 V.

IEC 61000-4-4
IEC 61000-4-18
GB/T 17626.18
GB/T 17626.4
EN 61000-4-4
EN61000-4-18

General Parameters
Connector	BNC;
Input Voltage	Max 5,000 V;
Dimension of Insulating Material	1100 ± 5 mm × 130 ± 1 mm
Dimension of Copper Plate	1050 ± 5 mm × 120 ± 1 mm; Plate thickness < 0.5 mm
Weight	300 g;
Operating Temp.	(23±5)℃
Operating Humidity	35 - 80%
Operating Air Pressure	60 – 106 kPa

Standard Accessories
TFB 500	50 Ω attenuator for calibration	1 pc
AD-CA-CCC	Adaptor, connecting the transducer plate to the attenuator and ensure good connection of the attenuator to the reference ground.	1 pc
