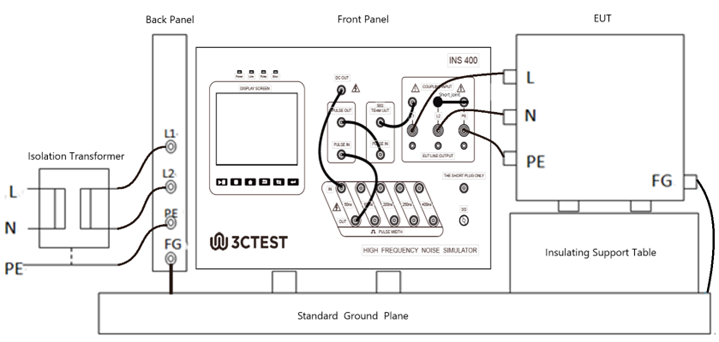

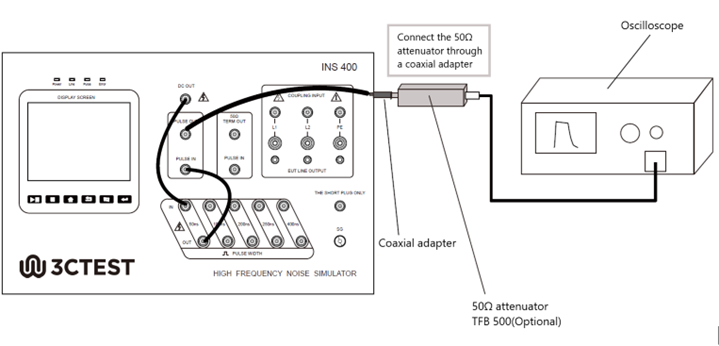

2、Typical test connection diagram（differential mode L1-L2）：
|
Technical Parameter |
|
|
Output voltage |
0.1 kV ~ 2 kV±10%,Built-in 50Ω terminal load |
|
Polarity |
Positive or Negative |
|
Output impedance |
50 Ω |
|
Rise time |
＜1 ns |
|
Pulse width |
50 ns ~ 1000 ns (Adjustable 50 ns per step) |
|
Repetition frequency |
MAX 80Hz，(depends on set voltage) |
|
Phase synchronization |
0 ~ 359°,±10%（仅L1-L2） |
|
EUT capacity |
AC240 V 16 A、DC 60 V 16 A |
|
Trigger mode |
Manual, automatic, external |
|
Test time |
MAX 60 seconds/time |
|
General Parameters |
|
|
Working power supply |
AC 110/220 V，土10%，50 Hz/60 Hz |
|
Environment humidity |
45% ~ 75%RH (no condensation) |
|
Relative temperature |
15 ℃ ~ 35 ℃ |
|
Boundary Dimension |
21 inches, 6U |
|
Weight |
Approx. 30 kg |
|
Accessories |
|
|
User manual, Testing line, short circuit ,Power line, Earth line, coaxial line , Fuses |
|
|
Optional Accessories |
|
|
1.Coupling and decoupling network INSN 2032
|
AC 380 V Three-phase five-wire system 32 A Input voltage 2000 V |
|
2.Coupling and decoupling network INSN 2050
|
AC 380 V Three-phase five-wire system 50 A Input voltage 2000 V
|
|
3. Attenuator TFB 500
|
Output impedance：50 Ω Attenuation ratio：500:1 Frequency range: ：DC-400 MHz |
|
4.Capacitive coupling clamp CCC 100
|
Coupling capacitance:100 pF ~ 1000 pF DC 5 kV Insulation power:＞5 kV ( 1.2/50 μs) Boundary dimension: 1040 ×140×110 mm |
|
5.Current Injection Clamp BCIP-400
|
Frequency range：10 kHz～400 MHz Inside diameter：φ40 mm |
|
6.Isolation transformer |
|
