Technical parameters

Micro pulse module P1

Test voltage

3-600 V

Test voltage

Negative

Rise time Tr

0.5 us – 1 us

1.5 us – 3 us

No load

Duration Td

50 us 土20% no load

12 us 土20% 2 ohm matching load

1 ms 土20% no load

1 ms 土20% 50 ohm matching load

2 ms土20% no load

1.5 ms土20% 10 ohm matching load

0.2 ms 土20% no load

0.3 ms 土20% no load

0.5 ms土20% no load

Source impedance

2 Ω, 4 Ω, 10 Ω, 20 Ω, 30 Ω, 50 Ω

Number of test

1-9999

DUT voltage monitoring

10:1

DUT current monitoring

10 A:1 V

Pulse interval

0.2 s-60 s (the shortest interval depends on output voltage)

Coupling mode

ICC,DCC (50 μs 土20% no load waveform)

Micro pulse module P2a

Test voltage

3-200 V

Test voltage

Positive

Rise time Tr

0.5 us – 1 us

1.5 us – 3 us

No load

Duration Td

50 us 土20% no load

12 us 土20% 2 ohm matching load

1 ms 土20% no load

1 ms 土20% 50 ohm matching load

2 ms土20% no load

1.5 ms土20% 10 ohm matching load

0.2 ms 土20% no load

0.3 ms 土20% no load

0.5 ms土20% no load

Source impedance

2 Ω, 4 Ω, 10 Ω, 20 Ω, 30 Ω, 50 Ω

Number of test

1-9999

DUT voltage monitoring

10:1

DUT current monitoring

10 A:1 V

Pulse interval

0.2 s-60 s (the shortest interval depends on output voltage)

Coupling mode

ICC, DCC

EFT/Burst module P3a/3b

Test voltage

25-700 V

Polarity

P3b positive, P3a negative

Rise time Tr

5 ns土30% into 50 ohm load

5 ns土30% into 1,000 ohm load

Duration Td

150 ns - 45/+45 ns into 50 ohm load

150 ns - 45/+45 ns into 1,000 ohm load

Source impedance

50 Ω

Pulse number

1-200

Burst interval

50 ms-999 ms

Pulse frequency

0.1 kHz-200 kHz

Test duration

1 s-50000 s

Coupling mode

CCC, DCC

output

Direct output

By 50 Ω coaxial connector (for test connected to capacitance coupling clamp）

General parameters

Mains supply

AC 110/220 V，土10%，45-65 Hz

Environment temperature

15 ℃ - 35 ℃

Relative humidity

35%-85%RH（no condensing）

Dimension

Output current 30 A: 4U

Output current  60 A and 100 A: 6U

Output current 200 A: 8U

Weight

Approx. 20 kg

Trigger

Automatic, manual

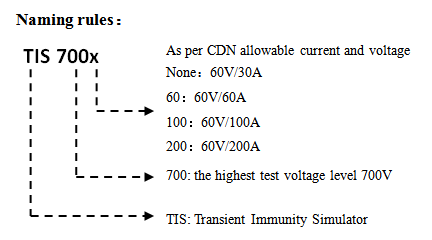

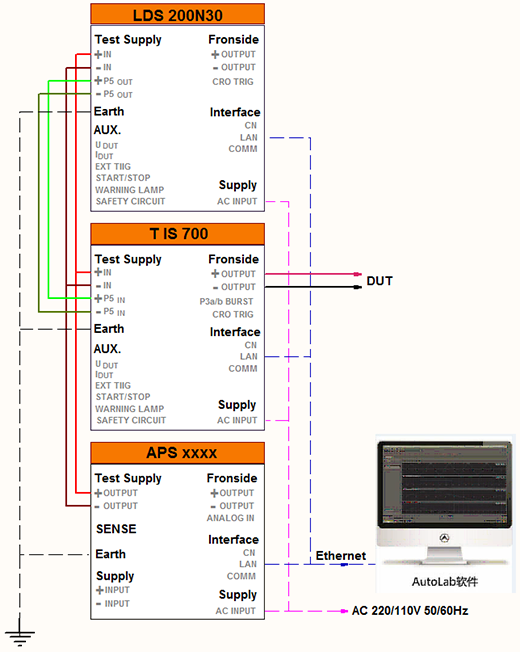

Network

Internal CDN 60 V/30 A current up to 200 A

Input

DUT supply

DC voltage from APS, APG or other DC source

Pulse 5,7

TIS 700 network superimposing Pulse 5 and Pulse 7

Output

LDS200 input

Central DUT output port

Coaxial output port

To connect capacitance coupling clamp as per ISO7637-3

Standard equipped

Simulator, user manual, inspection report, warranty, test cables, power cords, DUT power cords, grounding cables

Options

Main parameters

1. Inductive coupling clamp BCIP -200

Frequency range：10kHz～200MHz

2. Calibration fixture BCICF-400

Frequency range: DC-400MHz

Characteristic impedance: 50Ω

3.100nF coupling capacitor DCP-100N

capacitance：100nF

withstand voltage：200V

4.100pF coupling capacitor DCP-100P

capacitance：100pF

withstand voltage：200V

5.Calibration resistance PVK

Model

Impedance[Ω]

PVK 05

0.5

PVK 1

1

PVK 2

2

PVK 4

4

PVK 10

10

PVK 20

20

PVK 30

30

PVK 50

50

6.Capacitance coupling clamp V-EFTC

coupling capacitor：

100pF～200pF DC 5kV

7.Software

AUTO Lab

Support  windows XP and Windows7 and above，convenient operation, self-defined test program for functions and standard library;

Automatic/manual identifying the connected equipments and automatic configuration;

Based on the template function, users can flexible generate test reports.
