High Frequency Damped Sine Wave Generator DOS-CS116 is a high end generator which is designed to meet MIL-STD-461E/F/G CS116, GJB 151A-97 CS116, and GJB 151B-2013 CS116. This generator can produce 6 kinds of damped sine/cosine waveforms with frequency from 10kHz to 100MHz. It is used to perform conducted susceptibility tests on all types of interconnection cables and power cables of aircrafts, surface warships, submarine, space and terrestrial system.
Features:
> 5.7 inch touch screen front panel operation;
> In compliance with MIL-STD-461 E/F/G CS116, GJB 151A-97, and GJB151B-2013 CS116;
> 6 kinds of basic oscillation frequencies from 10 kHz to 100 MHz;
> 6-in-1 output terminals, easy to operate;
|
Technical Parameters |
||
|
Oscillation Frequency |
10 kHz, 100 kHz, 1 MHz, 10 MHz, 30 MHz, 100 MHz |
|
|
Test Current Range (Loop Impedance 100 Ω) |
10 kHz |
≥0.1 A |
|
100 kHz |
≥1 A |
|
|
1 MHz |
≥10 A |
|
|
10 MHz |
≥10 A |
|
|
30 MHz |
≥10 A |
|
|
100 MHz |
≥3 A |
|
|
Output Impedance |
＜100 Ω |
|
|
Damping Factor（Q） |
15 ± 5 |
|
|
Repetition Rate |
1 s～9 s |
|
|
Output Interface |
Type N |
|
|
General Parameters |
||
|
Power supply |
AC 110/220 V，±10%，50-60 Hz (Default setting: AC 220 V for mainland China） |
|
|
Environment temperature |
45%-75% RH（no condensation） |
|
|
Relative humidity |
15-35 ℃ |
|
|
Dimension |
19”，6 U |
|
|
Weight |
Approx.26.5 kg |
|
|
Accessories |
|
|
Testing wires, Power cable, Grounding wire, User manual |
|
|

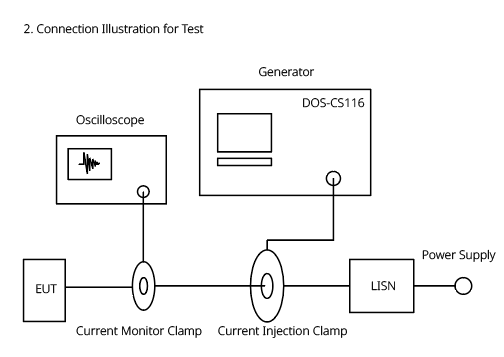

Current Injection Clamp and Calibration Fixture (required) |
|
|
Current Injection Clamp BCIP-200
|
Frequency: 10 kHz ~ 200 MHz Inner Dimeter: φ40mm |
|
Calibration Clamp BCICF-200
|
Frequency: 10 kHz ~ 200 MHz |
|
Note: DOS-CS116 matches with BCIP-200 and BCICF-200 or products made by FCC only. |
|
|
Options |
|
|
1.High-Voltage Coaxial Load HCL 50N
|
50 Ω 5 W DC-200 MHz |
|
2. Attenuator TFB 100
|
40±1.5 dB 5 W DC-400 MHz |
|
3. Broadband Current Monitoring Clamp TWCM-200
|
Frequency: 10 kHz ~ 200 MHz inner diameter: φ40 mm |
|
4. LISN J50
|
Max. continuous current 50 A Impedance 50 uH+5 Ω‖5 0Ω |
|
5. LISN J200
|
Max. continuous current 200 A Impedance 50 uH+5 Ω‖50 Ω |
