General Data

Output Voltage

Max. 80 V

Output Current

Max. 100 A

Analog Signal Input

BNC

Sense Signal Input

BNC

Source impedance

10 mΩ ~ 200 mΩ or without inner impedance

Voltage Compensation Resolution

±0.1 V

Max. Compensated Voltage

4 V

Voltage Deviation

＞90%, recovery time＜10 μs

Voltage Fluctuation

Ur＜0.2V P-P, min. frequency: 400 Hz

Rise Time

＜3 μs

Sine Signal Output

Frequency up to 300 kHz（subject to Vpp and output current of waveform）

External Signal Input

0 ~ ±10 V (according to actual device configuration)

Output

DUT supply: high current connector

Serial Port

LAN Ethernet and RJ45

Enlarging Scale of External Signal

1:10

Supply voltage

AC 220 V，±10%，45 Hz -65 Hz

Ambient Temperature

15 ℃～35 ℃

Dimension

APS 60xxD:19’’/8U      APS 80xxD:22U

Weight

Approx. 40 kg

Technical Data

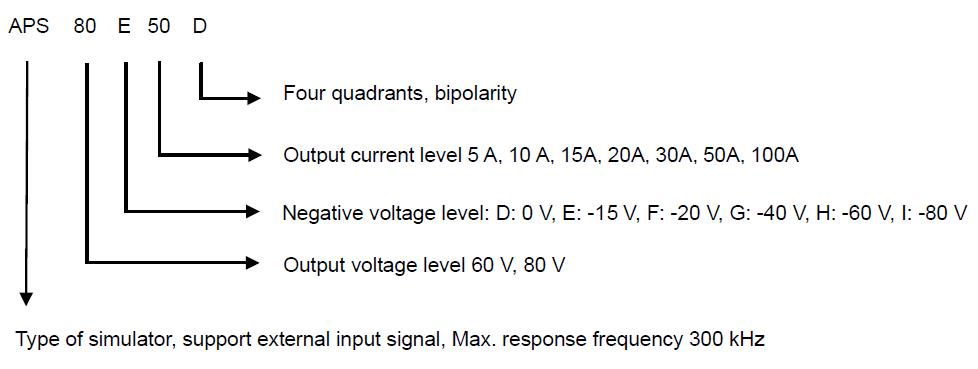

APS 60E10D+DCP 60E10D

Output Voltage

-15 V - +60 V

Output Current

Max. 10 A, continuous

Peak Current

20 A for 200 ms

Frequency Range

DC - 150 kHz, full signal

APS 60F20D+DCP 60F20D

Output Voltage

-20 V - +60 V

Output Current

Max. 20 A, continuous

Peak Current

40 A for 200 ms

Frequency Range

DC - 150 kHz, full signal

APS 60E30D+DCP 60E30D

Output Voltage

-15 V - +60 V

Output Current

Max. 30 A, continuous

Peak Current

60 A for 200 ms

Frequency Range

DC - 150 kHz, full signal

APS 60F30D+DCP 60F30D（AC110V）

Output Voltage

-20 V - +60 V

Output Current

Max. 30 A, continuous

Peak Current

60 A for 200 ms

Frequency Range

DC - 150 kHz, full signal

APS 80E10D

Output Voltage

-15 V - +80 V

Output Current

Max. 10 A, continuous

Peak Current

20 A for 200 ms

Frequency Range

DC - 150 kHz, full signal

APS 80F20D

Output Voltage

-20 V - +80 V

Output Current

Max. 20 A, continuous

Peak Current

40 A for 200 ms

Frequency Range

DC - 150 kHz, full signal

APS 80E30D

Output Voltage

-15 V - +80 V

Output Current

Max. 30 A, continuous

Peak Current

60 A for 200 ms

Frequency Range

DC - 150 kHz, full signal

APS 80E50D

Output Voltage

-15 V - +80 V

Output Current

Max. 50 A, continuous

Peak Current

100 A for 200 ms

Frequency Range

DC - 150 kHz, full signal

APS 80F100D

Output Voltage

-20 V - +80 V

Output Current

Max. 100 A, continuous

Peak Current

200 A for 200 ms

Frequency Range

DC - 150 kHz, full signal

Accessories

Test Cable, Power Wire, Grounded Wire, Fuse and User Manual

 Options

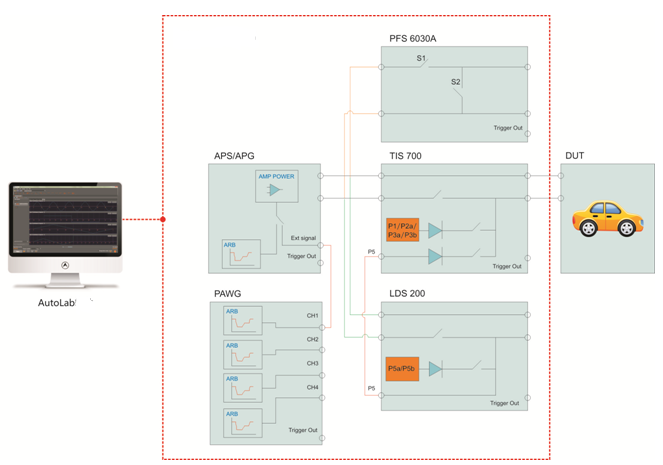

1.  PC control software (AUTO Lab)

Support windows XP and Windows 7; easy to use; beautiful and intuitive UI; Users can complete customized test sequence easily with various operation functions and standard library.

Any other waveforms except for standard library can be self-defined by users.

Capable of Recognizing automatically or manually the testing devices connected with AUTO Lab and configured automatically.

Test report function based on template helps user to generate testing report flexibly.

2. Output voltage 40 V can be customized.

3. Other negative voltage levels (except for D, E, F, G, H, I) are available on customers’ request.
