*）There is a large amount of inrush current for some of the test products (eg motor equipment, exhaust fans, wipers, air conditioners, etc.) or in the presence of large capacitive energy storage fittings. This inrush current is 3-10 times of normal current or even greater. If the customer's inrush current is not confirmed, our company's CTM series of current test module can be used to test the working current value to obtain the inrush current, so you can choose a more appropriate APS series of products.
**) APGxx series The output voltage range of the APS is 0 to 60V and the output current range is 0 to 400A.
The Max output frequency of sinusoidal signal is 30kHz；The instrument power is large enough to meet most of the test requirements
APSxx series The output voltage range of the APS is 0 to 60V and the output current range is 0 to 30A. The Max output frequency of sinusoidal signal is 30kHz；
APSxxD series is a four quadrant power supply. The maximum output voltage of the product is 80V. The difference between positive and negative voltage output shall not exceed 100V. The product line meets the 48V test system. The product output current range is 0 to 30A.The sinusoidal signal output frequency up to 300kHz.

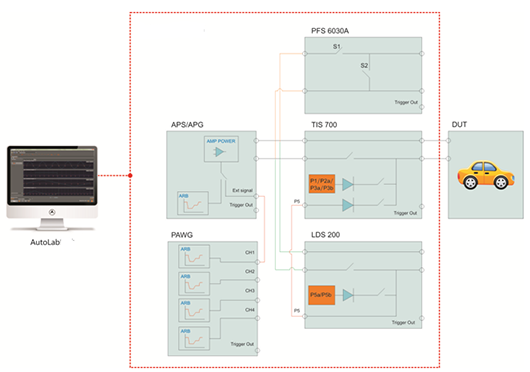

The test connection diagram:
Technical parameters
Output voltage
0-60V
Voltage resolution
±0.2V
Output current
Max.400A 500ms
Source impedance
<10mΩ
Voltage deviation
<1v(resistive load，including impulse current)，recover to 63% of max. amplitude during 100us
Voltage fluctuation
Ur < 0.2V pp，min. frequency: 400Hz
Rise time
< 100us(resistive load )
Sine signal output
Frequency up to 30kHz (as per Vpp and output current of waveform)
output
DUT supply: high current connector
Serial port
LAN Ethernet RJ45
Supply voltage*
AC 220V 士10% 45-65Hz
Auxiliary power supply voltage
AC 380V*3 士10%（22U、35U）
* Please indicate when ordering power supply for different areas
Temperature
15 - 35℃
Relative Humidity
35%-85%RH(no condensation)
Software（Optional）
Control software AUTO Lab With PC installed WIN XP and WIN7, it can be easily operated to make the measurement, based on the customized test program. It can identify any device for AUTO Lab test with automatic configuration. It can easily generate test reports.

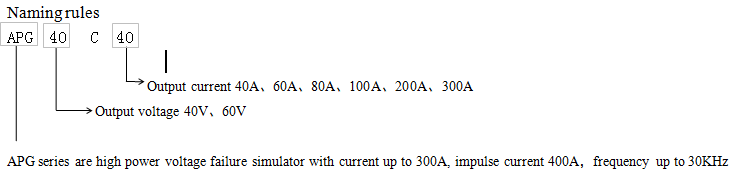

Models selection
Model
Parameters
Size
APG40C40
Rated 40V、40A max：60A 500ms
19inch/8U
APG40C60.1
Rated 40V、60A max：60A continuous
19 inch /8U
APG40C60.2
Rated 40V、60A max：120A 500ms
19 inch /22U
APG40C60.3
Rated 40V、60A max：160A 500ms
19 inch /22U
The maximum current 400A can be continuous with the customized voltage 40V
APG60C40
Rated 60V、40A max：80A 500ms
19 inch /22U
APG60C60
Rated 60V、60A max：80A 500ms
19 inch /22U
APG60C80
Rated 60V、80A max：150A 500ms
19 inch /22U
APG60C100
Rated 60V、100A continuous
19 inch /22U
APG60C100.1
Rated 60V、100A max：150A 500ms
19 inch /22U
APG60C100.2
Rated 60V、100A max：200A 500ms
19 inch /22U
APG60C200
Rated 60V、200A continuous
19 inch /22U
APG60C300
Rated 60V、300A continuous
19 inch /35U
The maximum current 400A can be continuous with the customized voltage 60V
|
Basic equipment |
|
Simulator, test cable, power cord, fuse, factory test report, warranty report and user manual |
