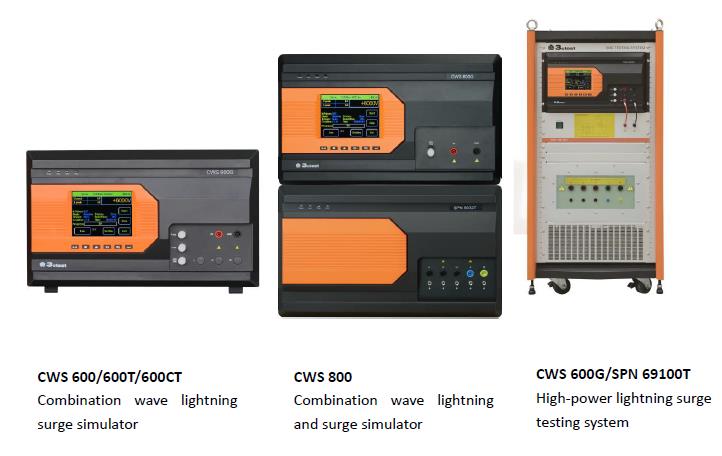

Lightning surge is a phenomenon of transient high voltage or bulk current produced by lightning and the on-and-off behavior of electronic or electrical switches, almost all the electronic or electrical device will suffer from surge. High-end CWS 600 series combination wave lightning surge simulator is specially designed to simulate the surge impulse interference, which totally satisfy the immunity testing requirement of CE and CCC approval to single-phase EUT. Optional external coupling/decoupling networks can be configured to test three-phase EUTs. With PMC 1200 module, the product and meet the requirement of IEC 61000-4-9.
Features：
> 5.7 inches color touch screen on front panel
> Built-in single-phase coupling/decoupling networks
> With test sequence, easy operation
> 250 V AC / 16 A; 110 V DC-1 / 12 A
> Controllable external three-phase coupling/decoupling networks
> Surge voltage and current monitoring LCD display
> Ethernet, RJ 45 interface for PC remote control and printing testing report

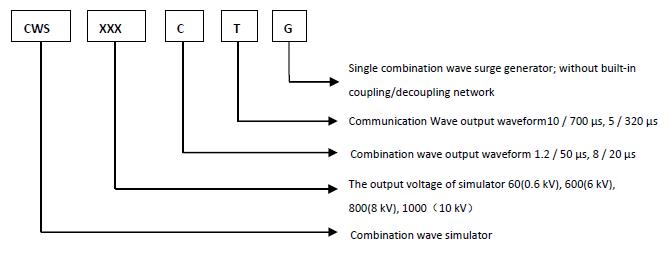

Naming Rule：
Model No.
|
Technical Parameters |
|||||||
|
Model No. |
Output Voltage |
Output Waveform |
Output Impedance |
Peak Value Acquisition |
|||
|
1.2/50 μs 8/20 μs |
10/700 μs 5/320 μs |
2 Ω |
15 Ω |
40 Ω |
|||
|
CWS 60G |
20-600 V |
√ |
|
√ |
|
|
|
|
CWS 600 |
0.3-6 kV |
√ |
|
√ |
|
|
√ |
|
CWS 800 |
0.3-8 kV |
√ |
|
√ |
|
|
√ |
|
CWS 1000 |
0.3-10 kV |
√ |
|
√ |
|
|
√ |
|
CWS 600T |
0.3-6 kV |
|
√ |
|
√ |
√ |
|
|
CWS 600CT |
0.3-6 kV |
√ |
√ |
√ |
√ |
√ |
√ |
|
Model No. |
Optional Coupling/Decoupling Networks |
Optional Impulse Magnetic Field IEC 61000-4-9 GB/T 17626.9 |
Cabinet Dimension |
|||
|
Built-in single-phase-3-wire AC 220 V 16 A DC-1 220 V 12 A |
External three-phase-5-wire SPN 38XXT AC 380 V 16 A DC-1 220 V 16 A (30 A) |
19 Inches 6U |
19 Inches 8U |
|||
|
CWS 60G |
|
|
|
√ |
|
|
|
CWS 600 |
√ |
√ |
√ |
√ |
|
|
|
CWS 800 |
√ |
√ |
√ |
|
√ |
|
|
CWS 1000 |
|
|
√ |
|
√ |
|
|
CWS 600T |
|
|
|
√ |
|
|
|
CWS 600CT |
|
√ |
√ |
√ |
|
|
|
General Parameters |
||||||
|
Synchronization |
0°-360°，1° step setup or random mode |
|||||
|
Polarity |
+/-/alternative |
|||||
|
Trigger Mode |
AUTO/MANUAL/EXTERNAL SIGNAL TRIGGER |
|||||
|
Impulse Cycle |
5-99 s（The shortest cycle depends on testing current） |
|||||
|
Testing number |
1-999 |
|||||
|
Failure Detection |
The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument. |
|||||
|
Working Status Indication |
LED indication and LCD display on front panel |
|||||
|
EUT Mains Voltage Injection |
4mm2 banana plug cable |
|||||
|
Detection Output Mode |
Standard 1 m Coaxial Wire |
|||||
|
Display Screen |
5.7 Inches TFT color touch screen |
|||||
|
Working Mains |
AC 110 V/220 V,±10%，50 Hz /60 Hz（AC 220 V in mainland China） |
|||||
|
Fuse |
6 A |
|||||
|
Maximum Power Consumption |
200 W |
|||||
|
User Storage Space |
Infinite (PC) |
|||||
|
Communication Mode |
Ethernet, RJ45 |
|||||
|
Cabinet Dimension（W*H*D） |
19 Inches/6 U/8 U |
|||||
|
Weight |
Approx. 30 Kg |
|||||
|
Ambient Temperature |
15 ℃–35 ℃ |
|||||
|
Relative Humidity |
45%-75% |
|||||
|
Atmospheric Pressure |
86 kPa～106 kPa |
|||||
|
Optional Testing Functions and Accessories |
|
1. Surge coupling/decoupling networks (CDN) SPN series IEC61000-4-5; SPN 3816T/32T（three-phase 380 V 16 A/32 A）; SPN 38100T（three-phase 380 V 100 A） SPN 6916T/32T（three-phase 690 V 16 A/32 A） |
|
2. Signal cable/ CDN for communication cable testing as per IEC 61000-4-5 （A）CDNs for 4-wire communication cable （B）CDNs for 8-wire communication cable |
|
3. Impulse magnetic field convertor PMC1200 IEC 61000-4-9 |
|
4. Magnetic field coil TCXS111 1mX1m single-turn coil; Magnetic field coil TCXS113 1 mX1 m three-turn coil IEC 61000-4-8 |
|
5. High voltage differential probe, Model NO. : VCF-80, testing voltage 8 kV, attenuation 1000:1 |
|
6. Wide-band Current Monitor, Model No.：CM 0220M |
|
7. PC Control Software CoreLab Support Windows XP and Windows 7; easy operation& beautiful UI ; user can easily perform customized testing sequence through each operation function and standard library; generate testing report flexibly. |
