Introduction

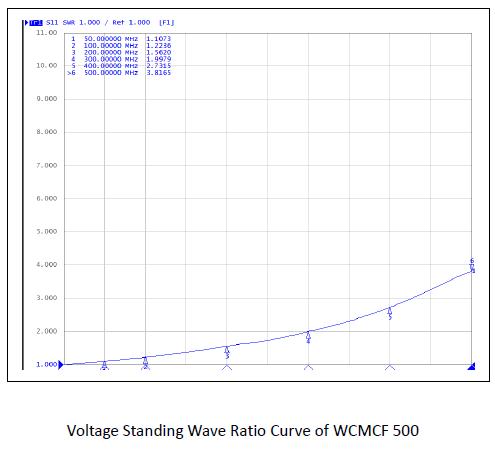

       The WCMCF 500 is the calibration fixture for wide-band current monitor clamp or current injection clamp. It is a kind of wide-band signal transmission/coupling device with features of small voltage standing wave ratio and no waveform distortion. The device can be quickly disassembled, especially suitable for calibration of closed/annular probe, which meet the test requirement of CS114, CS115 and CS116 specified in MIL-STD-461E/F/G, GJB 151A-97 and GJB 151B-2013.
