Current Injection Clamp Calibration Fixture BCICF-200

Model：BCICF-200

Profile

The BCICF-200 is a kind of wide-band transmission/coupling device used for the calibration of current injection/monitoring clamps: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The BCICF-200 is a kind of wide-band transmission/coupling device used for the calibration of current injection/monitoring clamps, which has the characteristics of low voltage SWR and distortion-free waveform. It meetsthe requirements of MIL-STD-461E /F/G, ISO 7637-3:2007/2011 and could be widely used in EMC conductive susceptibility (immunity) test.

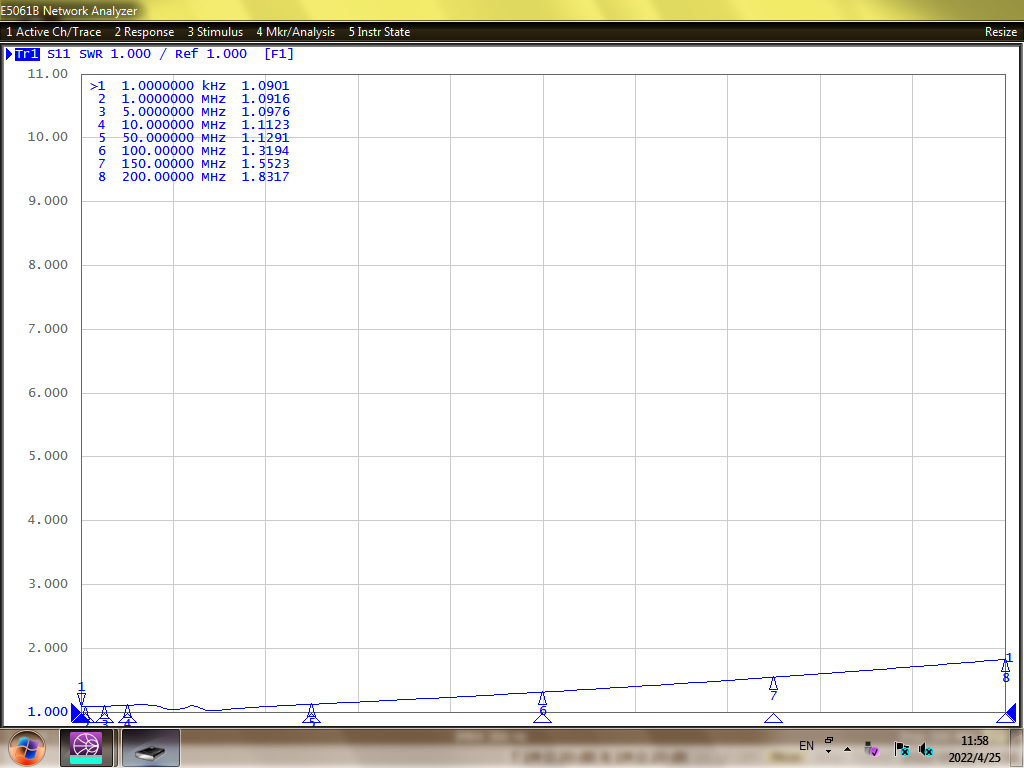

Voltage SWR Curve of BCICF-200

MIL-STD-461E/F/G
ISO 7637-3-2007/2011

General Parameters
Frequency	DC ~200 MHz
Characteristic Impedance	50 Ω
Voltage Standing Wave Ratio	≦2
Internal Length	100 mm
Internal Width	127 mm
Internal Height	135 mm
Weight	4.4 kg
