Vehicle Power Supply Circuit Negative Surge Simulator TIS 60T1

Model：TIS 60T1

Profile

The Vehicle Power Supply Circuit Negative Surge Simulator TIS 60T1 is designed according to Toyota TSC0502G: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The Vehicle Power Supply Circuit Negative Surge Simulator TIS 60T1 is designed according to Toyota TSC0502G, which is capable of simulating the various types of negative surges discharged form the inductive system load. It can generate square wave (Fig. 2a) and burst waveform (Fig.2b) with easy and intuitive setting design.

Features:
> 5.7” color touch screen;
> Satisfy the test requirement of negative surge test specified inToyotaTSC0502G;
> Built-in DC switch for spark test;

> Ethernet and RJ45 interface for PC remote control and test report printing;

Toyota TSC0502G
Toyota TSC3500G
Toyota TSC3590G
Toyota TSC7001G
Toyota TSC7203G
Toyota TSC7306G

Technical Parameters for Spark Surge: Square Wave and Burst Waveform
Output Voltage of Spark Surge (Vs)	-46 V(+1,-554 V) when connected to 25 Ω±0.5 Ω load -462 V(+10,-138 V)(when connected to 1 kΩ±0.02 kΩ load
Spark Surge Duration	Square Wave 0.1~1.5 ms Burst Waveform 50 μs±5 μs
Single Pulse of a Burst	Rise Time tr 5~10 ns Pulse Width td: 0.5 μs ~1.0 μs
Negative Surge Peak (Vp)	-100 V±2 V 25 Ω±0.5 Ω -120 V±2 V 1 kΩ±0.02 kΩ
Time Constant of Negative Surge Waveform τ	0.02 s±0.001s 25 Ω±0.5 Ω No requirement 1 kΩ±0.02 kΩ
Waveform Duration Time	1s
Test Repetition	2s
Counter	1-999
DUT Load(optional)	30 A、50 A、75 A、100 A
General Parameters
Working Power Supply	AC 110V/220V±10% 50/60Hz±5% AC 220V 50Hz in mainland China by default
Ambient Temperature	5℃ ~ 23℃
Relative Humidity	25% ~ 70%
Atmospheric Pressure	86kPa ~ 106kPa
Dimension	4U
Weight	Approx. 40 kg

Standard Accessories

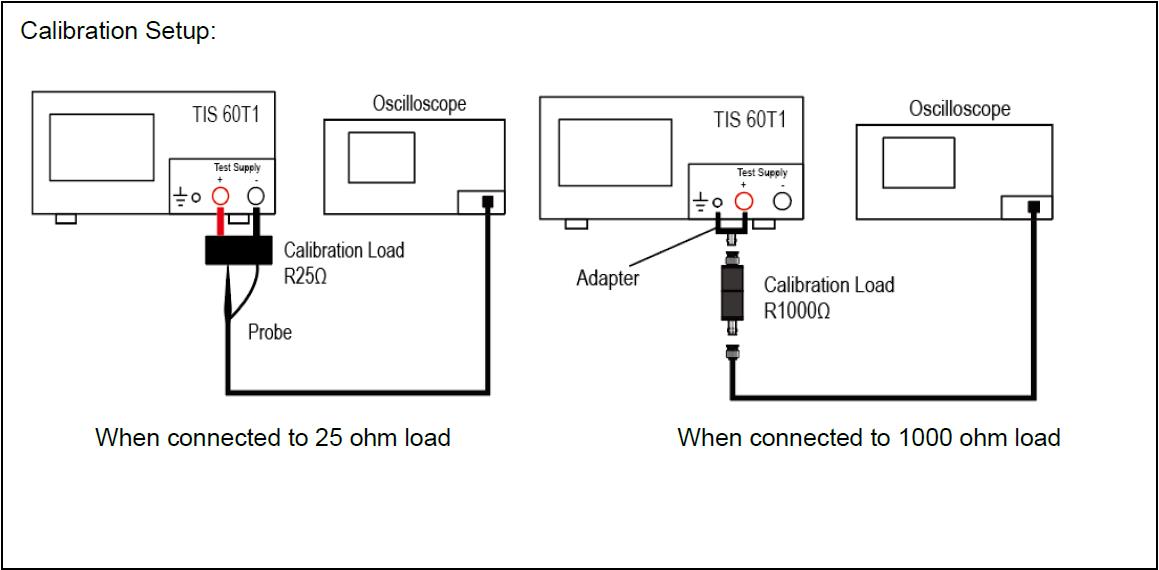

Test Line, Power Cord, Fuse (spare parts), Instruction Manual, Calibration Load R25 Ω, Calibration Load R1000 Ω

Options Accessories

Autolab Control Software
