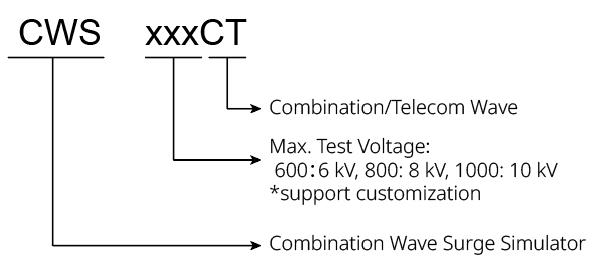

1.2/50 μs, 8/20 μs Combination Wave

Test Voltage

CWS 600CT: 0.3 kV ~ 6.0 kV± 10%

CWS 800CT: 0.3 kV ~ 8.0 kV± 10%

CWS 1000CT: 0.3 kV ~ 10.0 kV± 10%

Voltage Rise Time

1.2 μs± 30%

Voltage Duration

50 μs± 20%

Test Current

CWS 600CT: 0.15 kA ~ 3.0 kA± 10%

CWS 800CT: 0.15 kA ~ 4.0 kA± 10%

CWS 1000CT: 0.15 kA ~ 5.0 kA± 10%

Current Rise Time

8 μs± 20%

Current Duration

20 μs± 20%

Polarity

+, -, +/- Alternative

Source Impedance

2 ohm

Repetition Rate

11 s-99 s (the shortest time depends on the test voltage)

Voltage Peak Detection

Front panel BNC output:1000 V:1 V；LCD display the measured value

Current Peak Detection

Front panel BNC output::500 A:1 V；LCD display the measured value

Counter

1–999

Trigger Mode

Auto, manual and external trigger input

1.2/50us voltage wave (optional)

Test Voltage Range

CWS 600CT: 0.3 kV ~ 6.0 kV± 10%

CWS 800CT: 0.3 kV ~ 8.0 kV± 10%

CWS 1000CT: 0.3 kV ~ 10.0 kV± 10%

Voltage Rise Time

1.2 us± 30%

Voltage Duration

50 us± 20%

Polarity

+, -, +/- Alternative

Output Impedance

500 ohm

Repetition Rate

11 s-99 s (the shortest time depends on the test voltage)

Voltage Peak Detection

Front panel BNC output:1000 V:1 V；LCD display the measured value

Counter

1–999

Trigger Mode

Auto, manual and external trigger input

10/700 μs, 5/320μs Combination Wave

Test Voltage

CWS 600CT: 0.3 kV ~ 6.0 kV± 10%

CWS 800CT: 0.3 kV ~ 8.0 kV± 10%

CWS 1000CT: 0.3 kV ~ 10.0 kV± 10%

Voltage Rise Time

10 μs± 20%

Voltage Duration

700 μs± 20%

Test Current Range

CWS 600CT: 7.5 A ~ 150 A, ±10%

CWS 800CT: 7.5 A ~ 200 A, ±10%

CWS 1000CT: 7.5 A ~ 250 A, ±10%

Current Rise Time

5 μs± 20%

Current Duration

320 μs± 20%

Polarity

+, -, +/- alternative

Output Impedance

15 ohm, 40 ohm

Repetition Rate

16 s-99 s (the shortest time depends on the test voltage)

Counter

1 ~ 999

Trigger Mode

Auto, manual and external trigger input

General parameters

Display Screen

5.7inch TFT Touch Screen

Range of Working Power Supply

AC 110 V/220 V，±10%，50/60 Hz±5%（AC 220 V / 50 Hz for China）

Fuse

6 A

Max. Power Dissipation

200 W

User Storage Space

Infinity（PC）

Communication Mode

Ethernet、RJ45

External Control Mode

BNC,5 VTTL

CRO Trigger Output

BNC,5 VTTL

Run Control Input

BNC,5 VTTL

General parameters

External Sync Input

45-65 Hz, 20-500 V between dotted end and no dot end

0-500 V among dotted end, no dot end and crate

Output Of Warning Lamp

0-220 V AC 10 A/0-48 V DC 3 A

The power supply depends on the types of external signal lamp

Safety Circuit

Stop working when the safety loop is open circuit.

Failure Detection

LCD will display the failure on the front panel and interrupt instrument working.

Instrument Working Status Indicator

LED on the front panel indicates and LCD displays

Instrument Grounding Connection

Use flat ground wire

EUT Power Input

4mm banana plug wire

Detection Output Mode

Standard 1m coaxial cable

Size of Crate（W*H*D）

19 inch/6U

450 mm (W) * 280 mm(H) * 610 mm（D）

Weight

Approx.38 kg

Temperature Range

15 ℃~ 35 ℃

Humidity Range

45%-75%

Air Pressure Range

86 kPa～106 kPa

Accessories

Test Line, 3-core Power Line, Earth Line, Coaxial Cable,

Fuses (spare parts), User Manual

Optional functions and accessories

1. Surge CDN

SPN series IEC61000-4-5

SPN 3816T/32T（ three phase 380 V 16 A/32 A）

SPN 38100T（three phase 380 V 100 A）

SPN 6916T/32T（three phase 690 V 16 A/32 A）

2.Signal line/Communication line CDN IEC61000-4-5

（A）4-wire communication line CDN

（B）8-wire communication line CDN

3. Pulse magnetic field converter PMC 1200

IEC 61000-4-9

4. Magnetic coil ：

TCXS111 single-turn coil  1 m×1 m

5. HV Differential probe, VCF-80 test voltage 8 kV，attenuation ratio: 1000：1

6. Wide-band Current Monitor：CM 0220M
