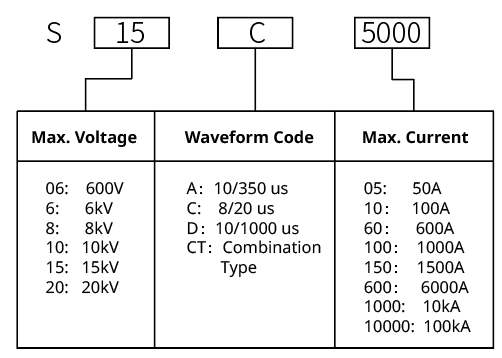

Technical Parameters-S15C5000 |
|
|
Test Current |
2 kA ~ 50 kA, ±10% |
|
Charging Voltage |
0.5 kV ~ 15 kV |
|
Current Waveform |
Rise time (1.25* Tr): 8 μs, ±10% Duration (1.18*Tw): 20 μs, ±10% |
|
Polarity |
Positive/ negative/ alternative |
|
Source Impedance |
0.3 Ω |
|
Repetition (time for single pulse) |
5 s ~ 1000 s (The minimum time is subjected to test voltage) |
|
Counter |
1~10000 |
|
Phase Sync. |
0° ~ 360°（45 Hz ~ 65 Hz） |
|
Pulse Current Monitor |
External, optional |
|
Trigger Mode |
Manual, Auto, External Trigger |
|
Dimension |
19” / 35U |
|
Weight |
Approx. 150 kg |
|
Technical Parameters-S15C7500 |
|
|
Test Current |
2 kA ~ 75 kA, ±10% |
|
Charging Voltage |
0.5 kV ~ 15 kV |
|
Current Waveform |
Rise time (1.25* Tr): 8 μs, ±10% Duration (1.18*Tw): 20 μs, ±10% |
|
Polarity |
Positive/ negative/ alternative |
|
Source Impedance |
0.2 Ω |
|
Repetition (time for single pulse) |
5 s ~ 1000 s (The minimum time is subjected to test voltage) |
|
Counter |
1~10000 |
|
Phase Sync. |
0° ~ 360°（45 Hz ~ 65 Hz） |
|
Pulse Current Monitor |
External, optional |
|
Trigger Mode |
Manual, Auto, External Trigger |
|
Dimension |
19” / 35U |
|
Weight |
Approx. 200 kg |
|
General Parameters |
|
|
Display Screen |
5.7” TFT touch screen |
|
Working Power |
AC 110 V/220 V（±10%）, 50 Hz /60 Hz (220 V in mainland China） |
|
Fuse |
6 A |
|
Max. Power |
500 W |
|
Communication Mode |
Ethernet LAN、RJ45 |
|
External Control Mode |
25-pin parallel port cable |
|
External Trigger Input |
BNC, 5 V TTL, the node is open, oscilloscope can trigger the product when internal circuit is closed. |
|
Running Control Input |
BNC, 5 V TTL |
|
Failure Detection |
The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument. |
|
Working Status Indication |
LED indication and LCD display on front panel |
|
Earthing Mode |
Flat earth line |
|
Monitor Output Mode |
Standard 1 m coaxial cable |
|
Ambient Temperature |
15 ℃ ~ 35 ℃ |
|
Relative Humidity |
45% ~ 75% |
|
Atmospheric Pressure |
86 kPa ~ 106 kPa |
|
Accessories |
|
|
User Manual, Test line, Ground line, 3-core power line, fuses (spare parts), Coaxial cable |
|
|
Options |
|
|
Ten-way distribution networks |
SPN 10 |
|
Coupling/decoupling networks |
CPN 4516S (customized for other load capacity) |
|
Isolation transformer |
DG-4.4 KVA |
|
Wide-band Current Monitor |
CM 0220M |
|
Measurement |
MAS 3000 |
|
Control Software |
Corelab |
