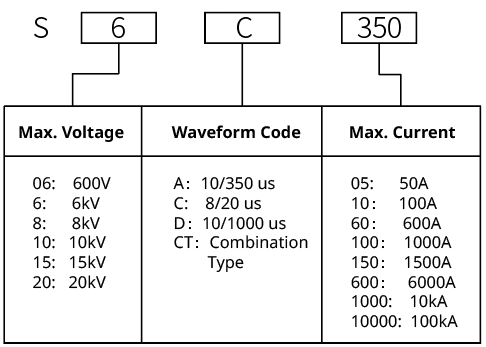

Technical Parameters-S6C350

Test Current

0.1 kA ~ 3.5 kA, ±10%

Charging Voltage

170 V ~ 6 kV

Current Waveform

Rise time (1.25* Tr): 8 μs, ±10%

Duration (1.18*Tw): 20 μs, ±10%

Polarity

Positive/ negative/ alternative

Source Impedance

1.7 Ω

Repetition (time for single pulse)

5 s ~ 1000 s (The minimum time is subjected to test voltage)

Counter

1~10000

Phase Sync.

0° ~ 360°（45 Hz ~ 65 Hz）

Pulse Current Monitor

BNC output, 100 A: 1 V

Trigger Mode

Manual, Auto, External Trigger

Dimension

19” / 6U

Weight

Approx. 20 kg

Technical Parameters-S6C700

Test Current

0.1 kA ~ 7.0 kA, ±10%

Charging Voltage

86 V ~ 6 kV

Current Waveform

Rise time (1.25* Tr): 8 μs, ±10%

Duration (1.18*Tw): 20 μs, ±10%

Polarity

Positive/ negative/ alternative

Source Impedance

0.86 Ω

Repetition (time for single pulse)

5 s ~ 1000 s (The minimum time is subjected to test voltage)

Counter

1~10000

Phase Sync.

0° ~ 360°（45 Hz ~ 65 Hz）

Pulse Current Monitor

BNC output, 100 A: 1 V

Trigger Mode

Manual, Auto, External Trigger

Dimension

19” / 6U

Weight

Approx. 25 kg

Technical Parameters-S6C1000

Test Current

0.1 kA ~ 10 kA, ±10%

Charging Voltage

52 V ~ 6 kV

Current Waveform

Rise time (1.25* Tr): 8 μs, ±10%

Duration (1.18*Tw): 20 μs, ±10%

Polarity

Positive/ negative/ alternative

Source Impedance

0.52 Ω

Repetition (time for single pulse)

5 s ~ 1000 s (The minimum time is subjected to test voltage)

Counter

1~10000

Phase Sync.

0° ~ 360°（45 Hz ~ 65 Hz）

Pulse Current Monitor

BNC output, 100 A: 1 V

Trigger Mode

Manual, Auto, External Trigger

Dimension

19” / 6U

Weight

Approx. 30 kg

Technical Parameters-S6C2000

Test Current

0.2 kA ~ 20 kA, ±10%

Charging Voltage

52 V ~ 6 kV

Current Waveform

Rise time (1.25* Tr): 8 μs, ±10%

Duration (1.18*Tw): 20 μs, ±10%

Polarity

Positive/ negative/ alternative

Source Impedance

0.26 Ω

Repetition (time for single pulse)

5 s ~ 1000 s (The minimum time is subjected to test voltage)

Counter

1~10000

Phase Sync.

0° ~ 360°（45 Hz ~ 65 Hz）

Pulse Current Monitor

External, optional

Trigger Mode

Manual, Auto, External Trigger

Dimension

19” / 6U

Weight

Approx. 50 kg

Technical Parameters-S6C4000

Test Current

0.4 kA ~ 40 kA, ±10%

Charging Voltage

52 V ~ 6 kV

Current Waveform

Rise time (1.25* Tr): 8 μs, ±10%

Duration (1.18*Tw): 20 μs, ±10%

Polarity

Positive/ negative/ alternative

Source Impedance

0.13 Ω

Repetition (time for single pulse)

5 s ~ 1000 s (The minimum time is subjected to test voltage)

Counter

1~10000

Phase Sync.

0° ~ 360°（45 Hz ~ 65 Hz）

Pulse Current Monitor

External, optional

Trigger Mode

Manual, Auto, External Trigger

Dimension

19” / 6U*2

Weight

Approx. 100 kg

General Parameters

Display Screen

5.7” TFT touch screen

Working Power

AC 110 V/220 V（±10%）, 50 Hz /60 Hz (220 V in mainland China）

Fuse

6 A

Max. Power

500 W

Communication Mode

Ethernet LAN、RJ45

External Control Mode

25-pin parallel port cable

External Trigger Input

BNC, 5 V TTL, the node is open, oscilloscope can trigger the product when internal circuit is closed.

Running Control Input

BNC, 5 V TTL

Failure Detection

The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument.

Working Status Indication

LED indication and LCD display on front panel

Earthing Mode

Flat earth line

Monitor Output Mode

Standard 1 m coaxial cable

Ambient Temperature

15 ℃ ~ 35 ℃

Relative Humidity

45% ~ 75%

Atmospheric Pressure

86 kPa ~ 106 kPa

Accessories

User Manual, Test line, Ground line, 3-core power line, fuses (spare parts), Coaxial cable

Options

Ten-way distribution networks

SPN 10

Coupling/decoupling networks

CPN 4516S (customized for other load capacity)

Isolation transformer

DG-4.4 KVA

Wide-band Current Monitor

CM 0220M

Measurement

MAS 3000

Control Software

Corelab
