Wide-band Current Monitor CM 0103M

Model：CM 0103M

Profile

The CM 0103M is used for measuring alternating current and time domain pulse current in the frequency range from 200 Hz to 20 MHz.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The CM 0103M is used for measuring alternating current and time domain pulse current in the frequency range from 200 Hz to 20 MHz. It features no waveform distortion and physically isolation with current carrier and transmits time harmonics current or pulse current to recording instruments in the form of voltage, which meet the measurement requirement of time harmonics signal with frequency of 20 MHz or below and transient pulse with rise time less than 18 ns. Widely used in tests of EMC conductive sensitivity (immunity).

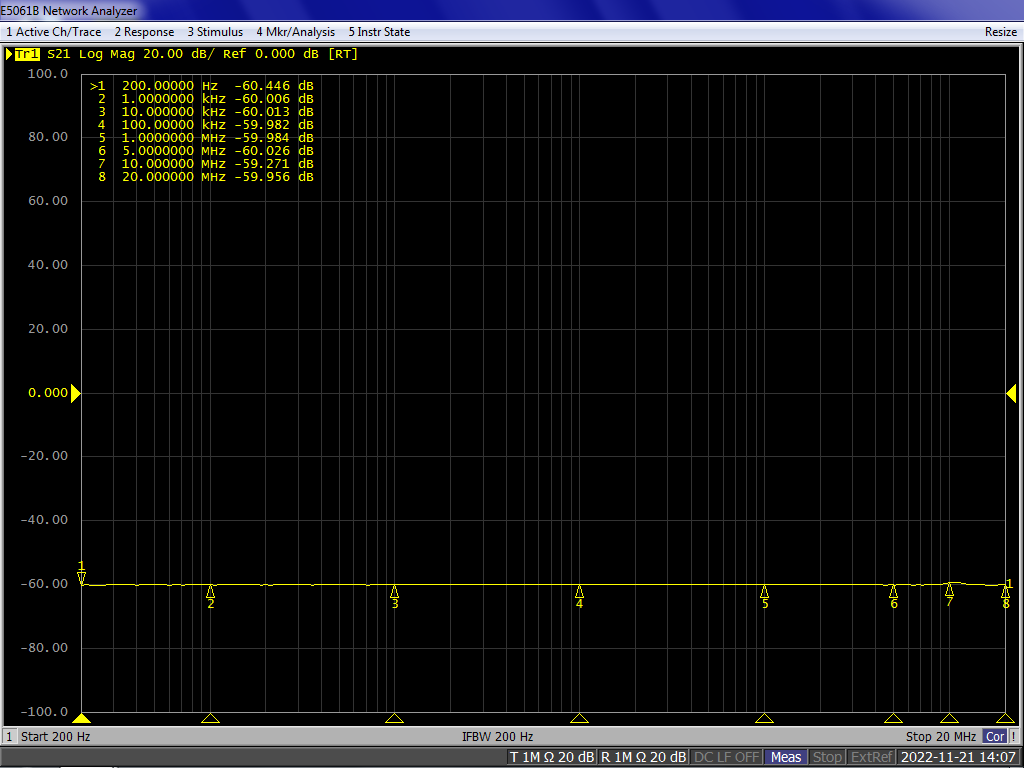

s21 curve of CM 0103M

Technical Parameters
Sensitivity	0.1 V/A	High Frequency 3 dB cut-off	20 MHz
Output Resistance	50 Ω	Inner Diameter	40 mm
Max. Peak Current	5,000 A	Outer Diameter	116 mm
Max. rms Current	50 A	Thickness	40 mm
Rise Time	18 ns	Interface Type	BNC type
Current Time Product	0.2 A·s	Operating Temperature	0 ℃ ~ 65 ℃
Low Frequency 3 dB cut-off	200 Hz	Weight	1 kg
