The INS 800 high-frequency noise simulator is designed to simulate the interference generated when the relay is turned on or off as a representative of the inductive component. This type of interference contains a wide spectrum (up to 2 GHz) that is coupled, reflected, resonated, and amplified by the IC through the wiring of the power line and the printed circuit board inside the device, causing equipment failure.
The device can be used to evaluate the performance of electronic equipment against transient conducted interference, and can qualitatively test the anti-radiation performance of the anti-interference performance of the electronic equipment system and the grounding performance of the system, and apply it most in various interference simulators. Wide, one of the most practical instruments.
Features：
> Floating output;
> Built-in 50 Ω terminal resistor;
> Manually select different pulse widths and coupling modes;
> Coaxial short-circuit device can easily realize the common difference mode test;
> 5.7” colorful touch screen operation, Can realize PC interconnection;
|
Technical Parameter |
|
|
Output voltage |
0.2 kV ~ 4 kV±10%，Built-in 50Ω terminal load |
|
Polarity |
Positive or Negative |
|
Output impedance |
50 Ω |
|
Rise time |
＜1 ns |
|
Pulse width |
50 ns ~ 1000 ns (Adjustable 50 ns per step) |
|
Repetition frequency |
MAX 60Hz，(depends on set voltage) |
|
Phase synchronization |
0 ~ 359°,±10%（仅L1-L2） |
|
EUT capacity |
AC240 V 16 A、DC 60 V 16 A |
|
Trigger mode |
Manual, automatic, external |
|
Test time |
MAX 30 seconds/time |
|
General Parameters |
|
|
Working power supply |
AC 110/220 V，土10%，50 Hz/60 Hz |
|
Environment humidity |
45% ~ 75%RH (no condensation) |
|
Relative temperature |
15 ℃ ~ 35 ℃ |
|
Boundary Dimension |
21 inches, 6U |
|
Weight |
Approx. 30 kg |
|
Accessories |
|
|
User manual, Coaxial adapter, Testing line, short circuit ,Power line, Earth line, Coaxial line , Fuses |
|
|
Optional Accessories |
|
|
1.Coupling and decoupling network INSN 4032
|
AC 380 V Three-phase five-wire system 32 A Input voltage 4000 V |
|
2.Coupling and decoupling network INSN 4050
|
AC 380 V Three-phase five-wire system 50 A Input voltage 4000 V |
|

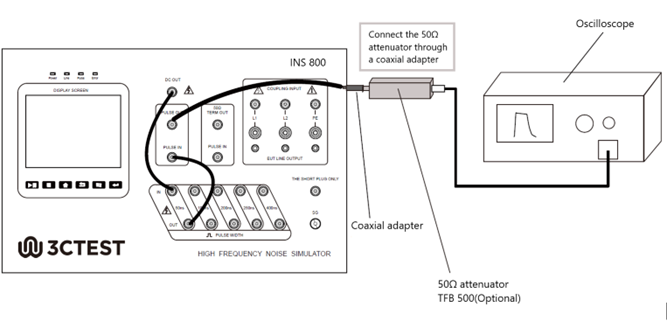

3. Attenuator TFB 500
|
Output impedance：50 Ω Attenuation ratio：500:1 Frequency range: DC-400 MHz |
|
4.Capacitive coupling clamp CCC 100(NMHV connector)
|
Coupling capacitance: 100 pF ~ 1000 pF DC 8 kV Insulation＞8 kV( 1.2/50 μs) Boundary dimension: 1040 ×140×110 mm |
|
5.Current injection pliers BCIP-400
|
Frequency range：10 kHz ~ 400 MHz Inside diameter：φ40 mm |
|

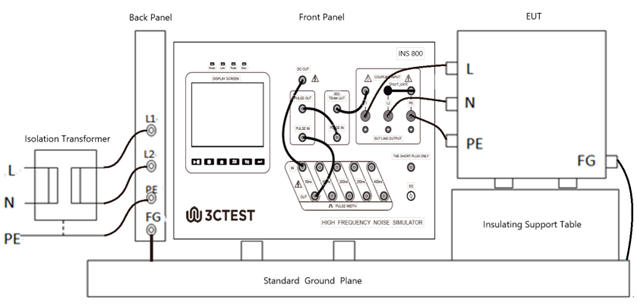

6.Isolation transformer |
|
